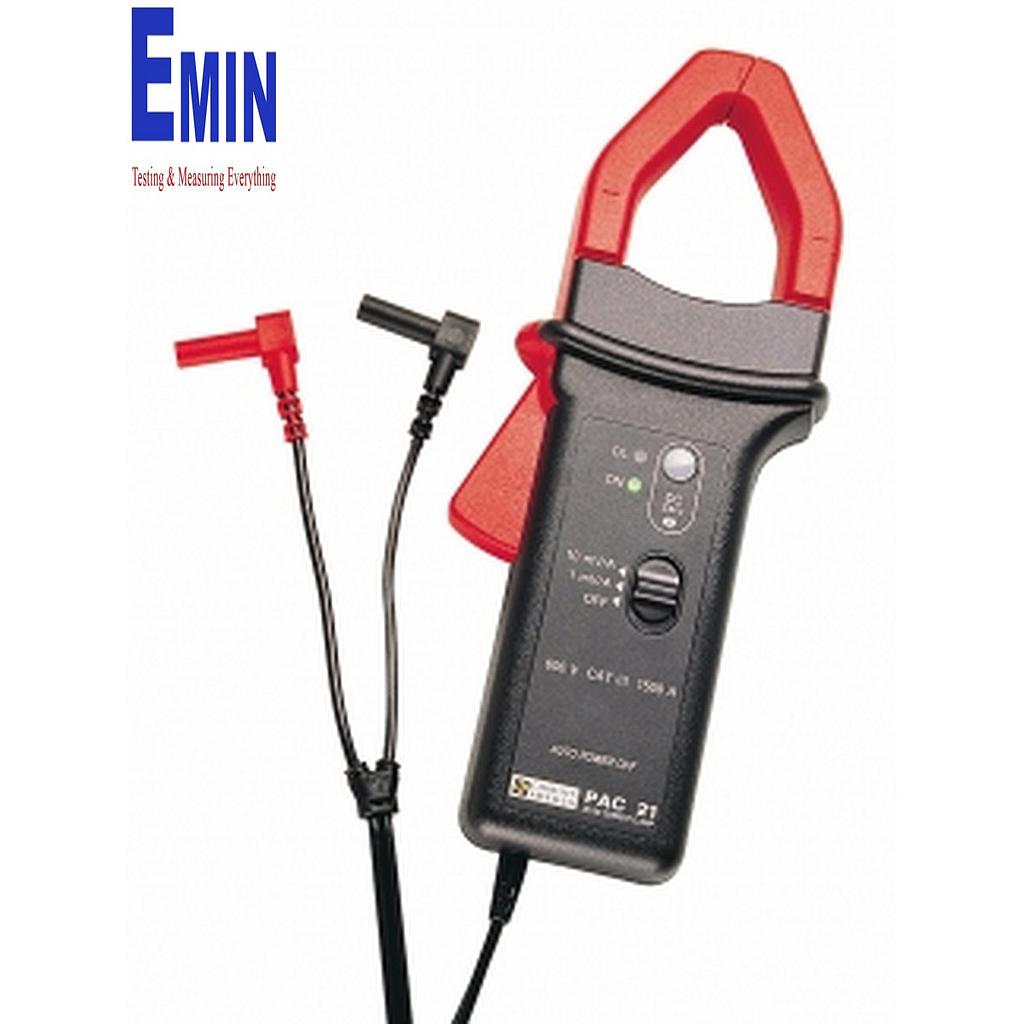

Chauvin Arnoux PAC 21 AC/DC current measurement
Manufacturer: Chauvin Arnoux Model: PAC 21 P/N: P01120069 Origin: France Guarantee: 12 Month - Contact
Manuafacturer: Chauvin Arnoux
Model : PAC 21
Item: P01120069
Warranty : 12 month
- Input
+ Current: 0.2 - 100 A AC; 0.4 - 150 A DC; 0.5 - 1,000 A AC; 0.5 - 1,400 A DC
+ AC: yes
+ DC : yes
- Output / Connections
+ Voltage: 1.4 V AC/DC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1A/10mV; 1A/1mV
+ Automatic DC zero: yes
+ Bandwidth (frequency in Hz): DC- 10 kHz
+ Typical accuracy: ≤ 1.5 %; ≤ 2.5 %
datasheet
user guider
catalog vietnamese
catalog english
Description
The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents.
2 forms are proposed to clamp cables up to 30 mm or 42 mm in diameter, as well as small busbars.
The range comprises PAC1x models and PAC2x models for higher currents.
This clamp has 2 sensitivities for better measurement resolution and accuracy, a simplified ZeroDC adjustment system and a deactivatable automatic standby function.
Main features of the PAC21 model:
- Rated current: 1,000 A AC/1,400 A DC
- Output signal: DC and AC voltage
- Output / input ratio: 10 mV / A, 1 mV / A
- Output via lead and isolated Ø 4 mm male plugs
