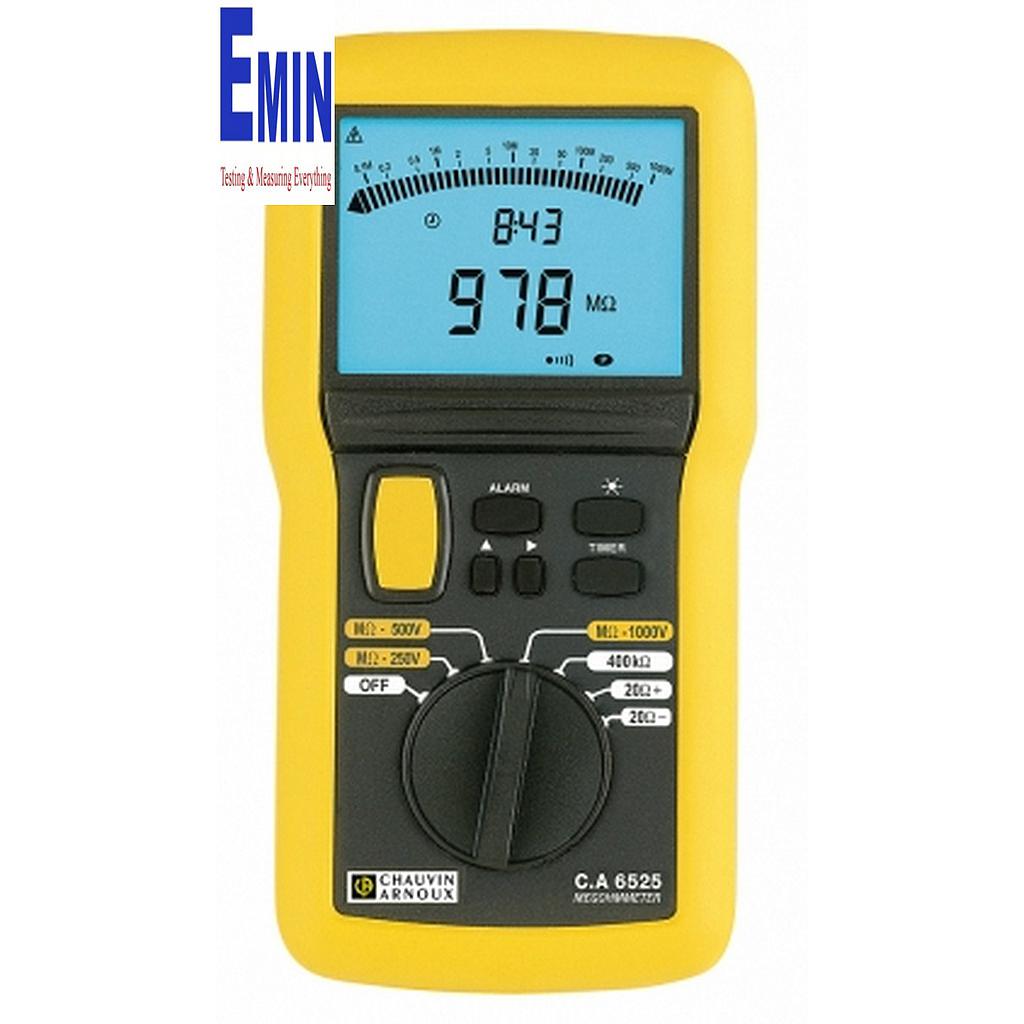

Chauvin Arnoux C.A 6525 Digital megohmmeters

ManufacturerChauvin Arnoux(View more products from this manufacturer)

ModelC.A 6525

P/NP01140803D

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manuafacturer: Chauvin Arnoux
Model : C.A 6525
Item: P01140803D
Warranty : 12 month

Insulation
- Test voltage : 250V ( 50 kΩ - 2 GΩ); 500 V (100 kΩ - 2 GΩ)/ 1000 V ( 200 kΩ - 2 GΩ)
- Accuracy (200 kΩ to 2 GΩ): ± 3 % of value ± 2 cts
- Voltage test / Safety: 0 to 600 VAC/DC
- Voltage alert indicator: Yes > 25 V
- Test inhibition: Yes > 25 V
Continuity
- Range: 0.0 to 19.99 Ω
- Measurement current: ≥ 200 mA up to 20 Ω
- Current inversion: yes
- Cable compensation: yes
- Buzzer: yes
Resistance
- Range: 0 to 400 k Ω
Other features
- Alarms: yes
- timer: 0 to 15 min
- Display: LCD + Bargraph, Backlighting
- Dimensions: 211 x 108 x 60 mm
- Weight: 830 g
- Power supply: 6 x AA batteries
- Electrical safety: IEC 61010 300 V CAT II – IEC 61557

State at delivery: Delivered with a "hands-free" bag containing a set of 2 leads 1.5 m long,
1 crocodile clip, 1 black test probe, 6 x 1.5 V AA batteries and an operating manual

Optional compatible accessories
-Remote control probe P01101935
-C.A 846 thermo-hygrometer   P01156301Z
-C.A 861 thermometer + K thermocouple P01650101Z
-Carrying bag / "hands-free" use P01298049
-Set of 5 x 0.63A fuses P01297078
-1.5 V AA alkaline battery P01296033
-Test probes (red + black) P01102051Z
-Crocodile clips (red + black)   P01102052Z
-Elbowed-straight safety leads (red + black) 1.5 m long   P01295283Z

Description

1,000 V portable digital insulation tester

Particularly simple to use, the C.A 6525 insulation tester is ideal for testing electrical installations and equipment.

Functions and specifications:

insulation measurement: up to 2 GΩ at 250 V, 500 V and 1,000 V DC
voltage indication before insulation measurement: 0 to 600 V AC/DC (blocking if U > 25 V)
continuity measurement: -20 Ω to +20 Ω (audible beep and compensation of leads)
resistance measurements: 0 to 400 kΩ
large 4,000-count display + bargraph (simultaneous reading of the measurement and analogue variance)
backlightin
programming of alarms
timer function (0 to 15 min)
remote control probe available as an option
rear stand for use on a bench or on the ground
long battery life: 6 x LR6 1.5 V batteries
compliant with IEC 61557
electrical safety: IEC 61010 300 V Cat IlI
dimensions: 211 x 108 x 60 mm; weight: 830 g
