Manuafacturer: Chauvin Arnoux
Model : C.A 6160
Item: P01145801
Warranty : 12 month
- Mains voltage: 230 V/50-60 Hz
- Maximum power: 500 VA
- Permanently backlit LCD matrice screen
- RS232 Interface
- Remote control signals: ON/OFF, RECORD
- Connector for connection with EAN13 type bar code reader
- Comply with EN 61010-1 and EN 61326 standards
- Overvoltage category:
- Cat .III 300 V, Cat. II 600 V
- Degree of pollution: 2 – Protection class: I
- Protection factor (closed): IP 50
- Dimensions: 410 x 175 x 370 mm
- Weight: 13.5 kg
Thiết bị tiêu chuẩn:
Delivered with carrying bag containing:
- 1 mains cable (EURO or GB)
- 2 pistol-grip dielectrical testers with 2 metre-long wire
- 2 insulation test wires, 3 metres long (1 red, 1 black)
- 2 alligator clamps (1 red, 1 black)
- 2 test probes (1 red, 1 black)
- 4 continuity test cables, 2.5 metres long (2 red, 2 black)
- 1 discharge time cable (EURO or GB)
- 5 instruction manuals (5 languages)
OPTIONAL ACCESSORIES
- PC software P01.1019.96
- Remote control pedal P01.1019.16
- Signal lamps (green/red) P01.1019.17

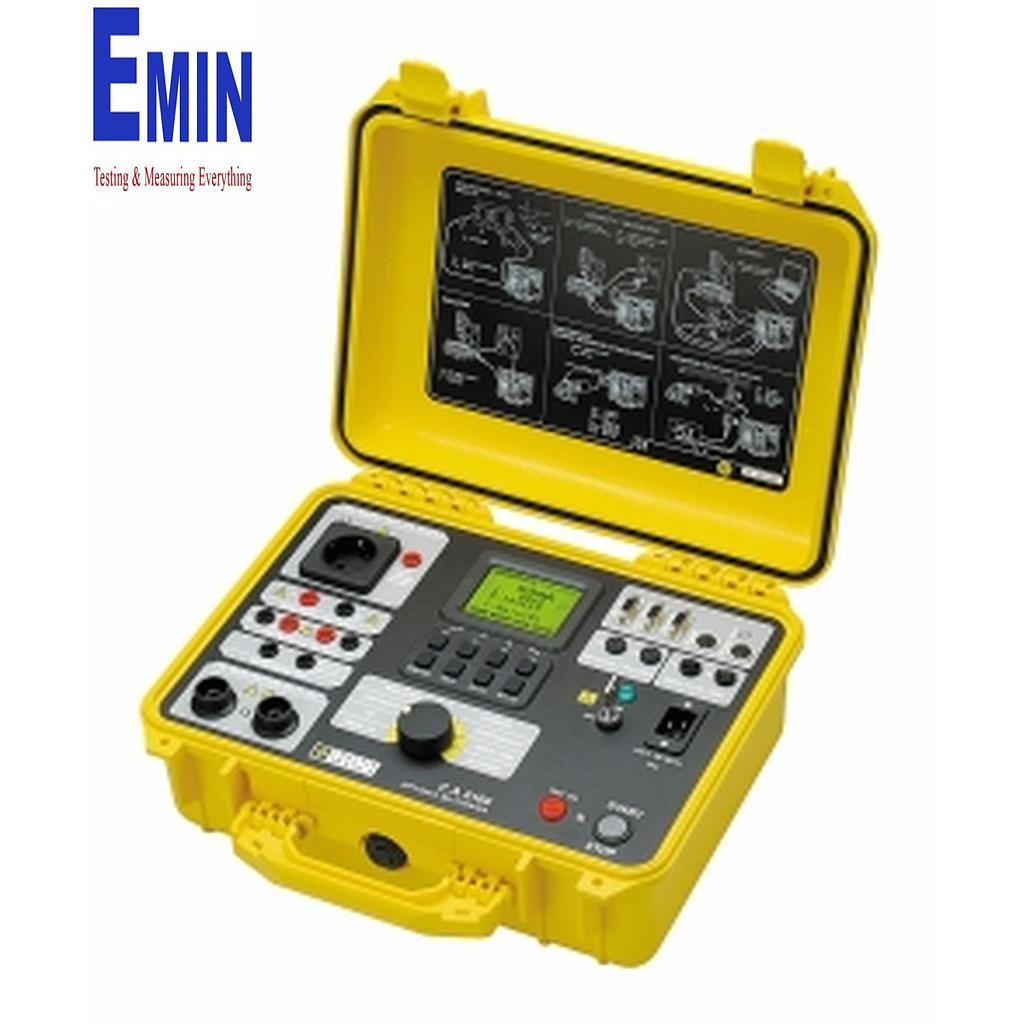

The C.A 6160 is a powerful portable instrument for complete certification testing of a broad range of electrical appliances and equipment: dielectric test, continuity, voltage drop, insulation resistance, leakage current, discharge time and functional testing.
The following optional accessories are also available for this instrument:
The PC SOFTWARE is the ideal tool for use with the C.A 6160 to:
The REMOTE CONTROL PEDAL frees the user's hands and provides the On/Off functions for testing and storage of the result (double pedal)
The INDICATOR LIGHTS: during dielectric tests,
this unit remotely indicates any potential or actual danger (red or green lights). This ensures even greater safety for people close to the test location.
The HIGH-VOLTAGE GUNS: two dielectric test guns equipped with a cable 6 m long are also available. They allow tests to be carried out at a greater distance than with standard guns (2 m).
