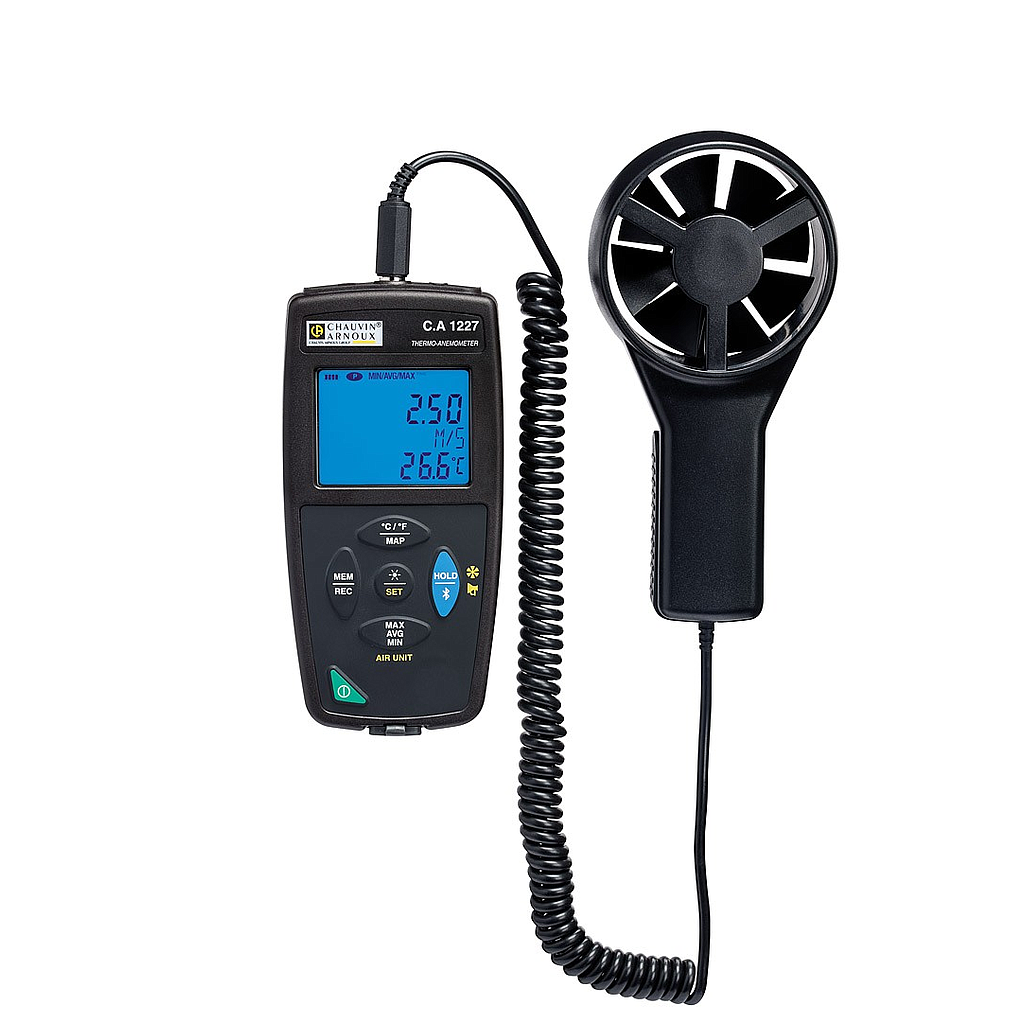

AIR SPEED AND FLOW RATE
- Type of sensor: Vane / optical detection
- Speed :
+ Measurement range: 0.25 m/s to 35.0 m/s (49.0 to 6890.0 fpm)
+ Resolution
0.01 m/s ( 0.25 to 2.99 m/s) / 0.1 fpm (49.0 to 99.9 fpm)
0.1 m/s ( 3.0 to 35.0 m/s) / 1 fpm (100 to 6,850 fpm)
+ Intrinsic uncertainty : ± 3 % of reading ± 4 counts
- Flow rate
+ Measurement range : 0.00 to 2,999 m3/h
+ Resolution :
0.01 m3/h ( 0.00 to 2.99 m3/h)
0.1 m3/h ( 3.0 to 99.9 m3/h)
1 m3/h (100 to 2,999 m3/h)
+ Intrinsic uncertainty : ± 8% of reading
TEMPERATURE
- Type of sensor : CTN
- Measurement range: - 20.0 to + 50.0 °C/ - 4 to + 122 °F
- Resolution : Display in °C: 0.1°C Display in °F: 0.1°F
- Intrinsic uncertainty in °C : 0 to 50 °C: ± 0.8 °C / -20 to 0 °C: ± 1.6 °C
FUNCTIONS
- Recording
+ Manual Start / Stop on the product: short press for MEM spot recording / Long press for REC recording at the rate of the current mode
+ Programmed recording: start date, recording interval (1 minute to 2 hours) and end date defined using the PC software
- Data storage : More than 1 million points
- Min-Avg-Max-Hold : Yes
- MAP mode: The MAP function can be used to map the air speeds measured
- Flow-rate measurement : Yes: direct reading with the cones proposed as accessories or on the basis of a surface defined by the user.
- Backlighting : Yes
- Units
+ Air-speed units: m/s, km/h, fpm, mph -
+ Air flow-rate units: m3/s, m3/h, l/s, cfm
- Automatic power-off: Yes (configurable)
POWER SUPPLY
- Type : 3 x 1.5V AA / LR6 alkaline batteries. Mains connection possible with the mains / micro-USB adapter offered as an accessory
- Battery life: 200 hrs (portable mode) / 8 days of recording (15-minute intervals)
PHYSICAL SPECIFICATIONS
- Interfaces : 2 possible communication modes: Bluetooth wireless link and USB
- Mounting: Casing equipped with a magnet, a wall-mount system and a slot for suspending the product. Compatible with the Multifix accessory
- Dimensions / weight : 187 x 72 x 32 mm / 260 g with batteries
- Ingress protection : IP54 casing
- Product operating range: Temperature: -10 to +60 ° C / Humidity: 10 to 90 %RH
- Compliance : IEC61010-1 / IEC 61326-1
GENERAL SPECIFICATIONS
- Data Logger Transfer Windows PC software functions: Display as a graph or a table of values / Data export in graph or Excel table form. Real-time mode / Automatic report generation in Word format / Data format compatible with the Dataview software offered as an accessory
State at delivery: Bag, 3 x 1.5 V AA alkaline batteries, USB cable, test report and quick start-up guide
Accessories:
-Cones kit for flow-rate measurement with meter (circular cross-section Ø 210mm and rectangular cross-section 346x346mm) P01654250
-Vane sensor Ø80mm P01654251
-Shockproof sheath + Multifix P01654252
-Multifix P01102100Z
-Mains adapter P01651023
-Bag P01298075
-Metal case P01298071
-Dataview software P01102095
-Bluetooth BLE / USB modem for PC P01654253
-4 x AA/LR6 NiMH Batteries + Battery charger HX0053
Additional specifications:
- Flow rate measurement range: 0.25 m/s to 35.0 m/s
Intrinsic uncertainty: ± 3 % of reading ± 4 counts
- Flow rate measurement with the cones kit available as an accessory
Square cross-section: 346 x 346 mm / Circular cross-section: Ø210 mm
- Temperature measurement range: - 20.0 to + 50.0 °C
Intrinsic uncertainty: 0 to 50 °C : ± 0.8 °C / -20 to 0 °C : ± 1.6 °C
- Min, Max, Average, MAP and Hold functions / Backlighting
- Air speed units: m/s, km/h, fpm, mph
- Flow rate units: m3/s, m3/h, l/s, cfm
- Recording up to 1 million points
- USB or Bluetooth interfaces
- Vane diameter: Ø8 mm
- Casing dimensions: 150 x 72 x 32 mm / Sensor: 160 x 80 x 38 mm
- Weight: 400 g with batteries
- Compatible with the Multifix accessory
- Shockproof protective sheath available as an accessory
