MEASUREMENT
pH: Range: -2.00 to 16.00 pH; Accuracy: ± 0.02 pH
Redox
Range: ±199.9 mV; Accuracy: ± 0.2 mV
Range: -1999 to -200 and +200 to +1999 mV; Accuracy: ± 2 mV
Temperature: -10.0 to +120.0°C (accuracy: < 0.4°C)
Calibration:
pH Automatic, up to 3 points, 3 groups of predefined reference solutions (modifiable)
Redox Automatic, 1 point, two values of predefined reference solutions (modifiable)
Temperature compensation Automatic (ATC) or manual (MTC), -10°C to +120°C (14°F to 248°F)
Electrode
pH XRGST1 (supplied), pH combination electrode with built-in temperature sensor (Pt1000),
8-pin DIN connector
Redox XRPTST1 (option), ORP combination electrode with built-in temperature sensor (Pt1000),
8-pin DIN connector
Data storage
Date and time: Yes
Memory: > 100,000 measurements
Connectors
Sensor input: 8-pin DIN (adapters for BNC, S7 and Jack available as options)
Communication interface: Micro-USB type B (USB peripheral)
Batteries / Battery life: 4 x 1.5 V AA or LR6 alkaline batteries / Approx. 300 hours in continuous use
Auto power-off : after 3, 10 or 15 min of inactivity (adjustable)
Ingress protection: IP67
Environmental conditions
Storage location (excluding batteries, electrodes and buffer solutions): -20 to + 70°C
Operating range: -10 to +55 °C
Dimensions (with sheath): 211 x 127 x 54 mm
Weight (without electrode): 600 g

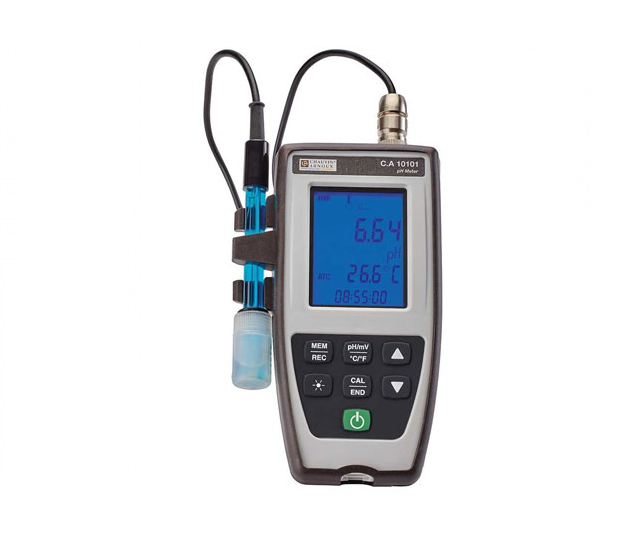

One C.A 10101 pH-meter delivered in a site-proof case with 1 pH combination electrode with built-in XRGST1 temperature sensor, 4 x AA or LR6 alkaline batteries, 1 protective sheath mounted on the instrument, 2 readyto-use pH 4.01 and pH 7.00 buffer solutions (compliant with NIST/DIN), 2 plastic beakers, 1 USB - micro USB cable, 1 wrist strap, quick start guides (one per language).
