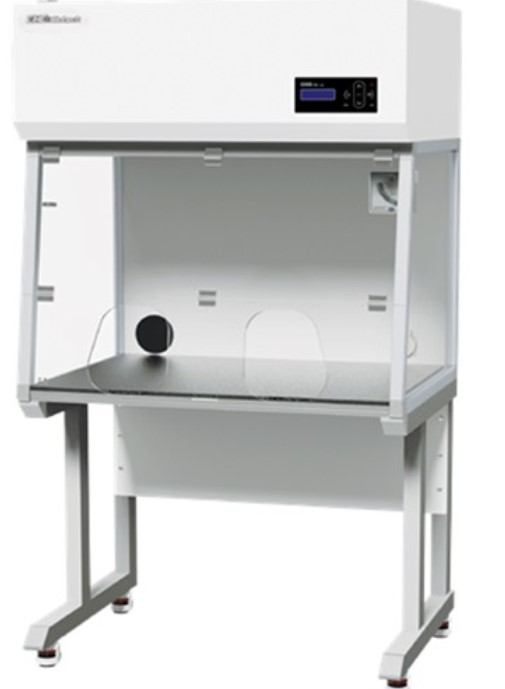

CHC Biotech C-DH-03 Ductless Fume Hood (CHC Lab CLE-051F-03)

Hardware:

- Dimensions (W×D×H, mm):

+ Exterior :   900×670×1770

+ Workspace: 832×615×575

- Material:

+ Exteriorl:      SPCC (Epoxy Powder Coated), AL, Polycarbonate

+ Sash:       Polycarbonate 8mm

+ Lower Stand:  SPCC

+ Worktop: (Work Top) Phenolic Laminate 19mm

Electricity:

- Power Supply:          220 V, 60 Hz  (Option: 110V, 50 / 60Hz, 220V, 50Hz)

- Fluorescent Lamp:       LED 12W x 1EA

- UV Light:     15W x 1EA

- Power Receptacle:     220V x 1EA (Right)  (option : 110 V 1cái)

Performance: Noise: ≤ 60dB(A)

 Filter: Nylon Filter  (Option : HEPA Filter, Organic Carbon Filter, Acid Carbon Filter)

 Option:

 - Acrylic on 4 Sides (For Sample Collection)

 - Water Tap/Cup Sink

Lower stand:

- Support frame (Height (mm)): 648

- Leveling Caster (Basic): 72

Details

- Product Introduction

Equipped with a filtration hood that does not require a connected duct, and is used for simple chemical experiments that generate harmful substances and odors. It is easy to move, install, and manage. Users can select a filter depending on the type of gas to filter harmful gases generated during the experiment, and protect laboratories and researchers from the risk of exposure to harmful gases.

- Product Details

+ Pre-Filter (Basic) / Carbon filter, HEPA filter (Option)

Prevents harmful gas exposure by applying filters suitable for the cases. Carbon Filter Type: Organic Filter and ACID Filter.

+LCD Degital Display Panel

Easy to observe the condition of the equipment, and operate Fan/Lamp.

+Anemometer

Easy to check the airflow rate in the hood by attaching an anemometer to the internal.

+3-sided acrylic (Horizontal casting)

Secures the optimal view to facilitate observation of the work surface with the 3-sided acrylic which has good visibility.

+Utility Hole

Equipped with a Utility Hole, so it is easy to bring in Energy Consumption and a gas line into the workspace.

+ Leveling Caster

The horizontal control is easy because the height can be adjusted, and it can be moved and fixed by applying the Stopper.
