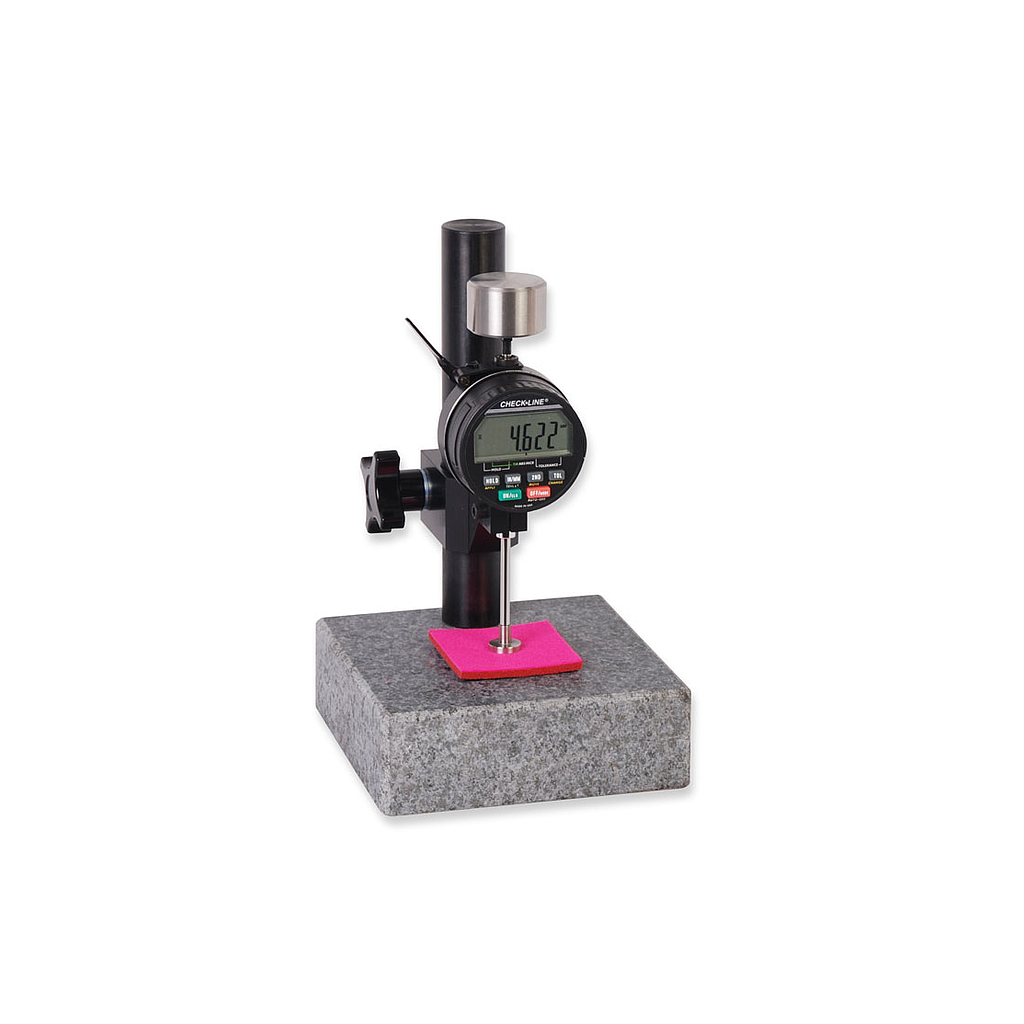

Checkline MTG-DX2 Digital Thickness Gauge (0–1 inch/0–25 mm)

Measuring Range: 0-1 inch (0-25 mm), Custom ranges up to 4 inches / 100mm available, inquire

Jaw Depth: 1-3/4", 44.5mm

Resolution: 0.0001" (0.002 mm)

Accuracy*: +/- 0.0002" (0.004 mm) *with radius tip, not a flat footer

Repeatability: 0.0000012"

Presser Foot Material: 303 Stainless Steel

Base Material: Labratory Grade Granite

Power: CR2450 Lithium Coin Battery or Power Over USB with Optional Cable

RS232 Output: 9600 baud, no parity, 8 data bits, 1 stop bit (requires external power)

Operating Temperature: 40°F to 105°F (5 to 40°C)

Spindle Thread: #4-48 UNF

Tolerance:

Weight: +/- 0.5 grams

Foot Diameter: +/- .005"

Maximum Mass: 1000 grams (1 Kg), max can be added to create desired test pressure

Self-Weight of Spindle: 20 grams

*Images are for illustrative purposes only
