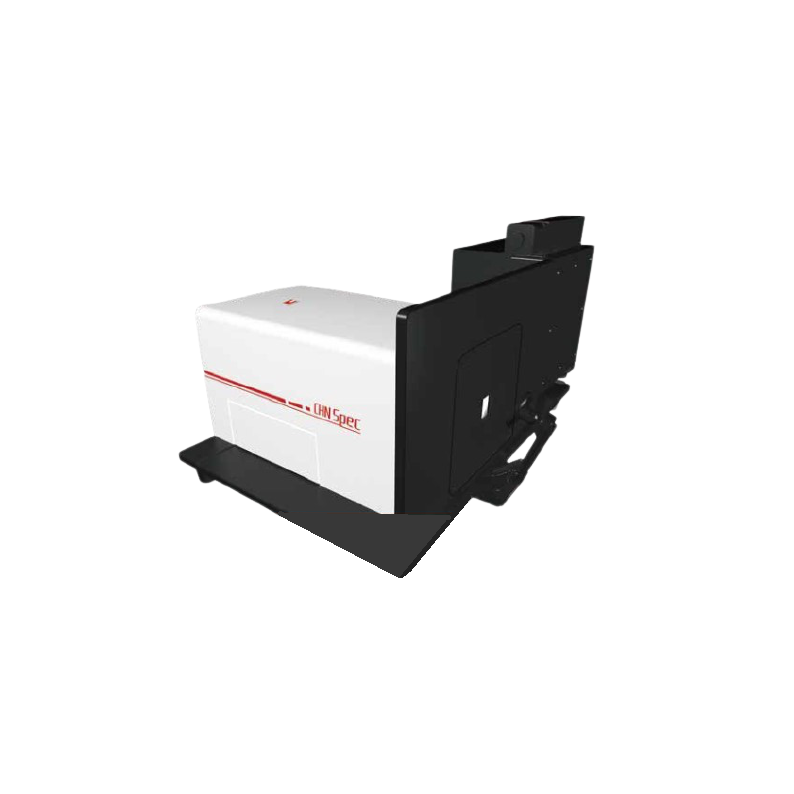

CHN SPEC CS-828 Image Color Spectrophotometer

Illumination/ Viewing System: Reflectance: d/8(Diffused illumination, 8 degree viewing) Simultaneous measurement of SCI/SCE, conform to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 condition C, ASTM E1164,ASTM-D1003-07

Sensor: Silicon Photodiode Array

Grating Method: Concave Grating

Sphere Diameter: 152mm

Wavelength Range: 400nm-700nm

Wavelength Pitch: 10nm

Half Band Width: 5nm

Reflectance Range Resolution: 0-200%,Resolution0.01%

Light Source: Full Wavelength LED

Measurement Aperture: 30*30mm(support custom made)

Minimum Measurement Area: 0.09mm²

Repeatability: XLAV Chromaticity value: Standard deviation within ΔE*ab0.03，Max. within ΔE*ab 0.1（0.3mm2 test area, when a white tile is measured 30 x at 10-second intervals after white calibration）

Inter-Instrument Agreement: XLAV ΔE*ab 0.4 (BCRA Series II, Average measurement of 12 tiles, at 23℃)

Observer: 2° and 10°

Illuminants: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF TL83,TL84

Color Spaces: L*a*b,L*C*h,Hunter Lab,Yxy,XYZ

Other Indices: WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),Metamerism index milm, stain fastness,color fastness, ISO brightness, R457, A density, T density, E density, M Density, APHA/Pt-Co/Hazen, Gardner, Saybolt, ASTM color, Haze, Total Transmittance, Opacity, Color Strength

Color Difference: ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555 shade sort

Operate Temperature: 5-40℃(40-104F), relative humidity 80% (at 35℃) no condensation

Storage Temperature: -20-45℃(-4-113F), relative humidity 80% (at 35℃) no condensation

Interface: USB

Accessories: power adaptor, USB cable, white tile
