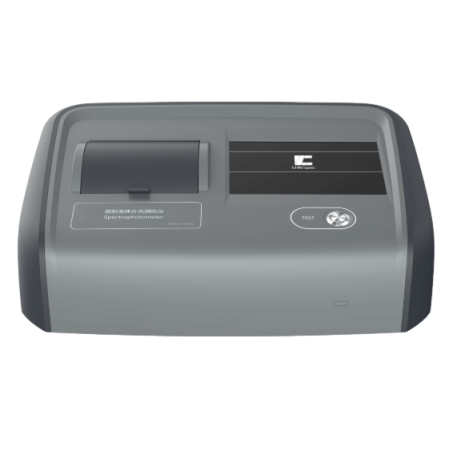

CHN SPEC DS-810N Benchtop liquid colorimeter (d/0, ΔE*ab≤0.05)

Measurement condition: d/0 (scattered light source, 0 degree viewing Angle)

Comply with CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c, ASTM D1209, ASTM D5386, ASTM D6045, ASTM D6166, ASTM D1502

Stand-alone operation: /

Integrating sphere: Φ40mm, Avian-D fully diffuse surface coating

Lighting source: CLEDs (Full Band Balanced Led Light Source)

Inductor: Dual optical sensor array sensor

Wavelength range: 360-780nm

Wavelength interval: 10nm

Half-band width: 5nm

Measuring range: 0~200%

Resolution: 0.0001

Observer Angle: 2°/10°

Observation light source: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-E,LED-F1,V1-LED,V4

Reveal: Pharmacopoeia color number, transmission map/data, sample chromaticity value, color difference value/map, pass/fail result, color bias, color simulation, color simulation

Measuring time: ≤1.5 seconds

Measuring optical path: Standard: 10mm glass colorimetric dish, 50mm glass colorimetric dish (optional 33mm and 100mm glass colorimetric dish)

Color space: CIE Lab, LCh, CIE Luv, XYZ, Yxy, transmissibility, Hunter Lab Munsell, M1, CMYK

Color difference formula: ΔEab, ΔECH, ΔEuv, ΔEcmc(2:1), ΔEcmc(1:1), ΔE94, ΔE*00

Other indicators: Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, The United States Pharmacopoeia), WI (ASTM E313-20, ASTM E313-73, CIE), ISO2470 / R457, Hunter, Taube, Berger Stensby

Repeatability*: Transmittance: standard deviation ≤0.08%; Colorimetric value: ΔE*ab≤0.05 (on standard deviation, maximum ≤0.04)

Interstation error: ΔE*ab < 0.25

Heating function: /

Heating temperature range: /

Audit trail: /

Software support: ColorExpert, Color QC2

Datasheet
