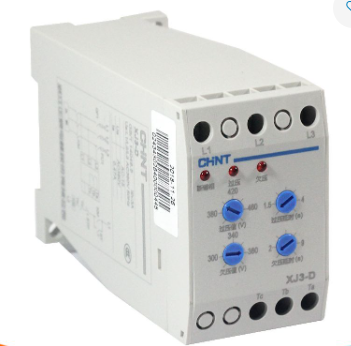

CHNT XJ3-D 3 Phase Voltage Protection Relay
Manufacturer: CHNT Model: XJ3-D Origin: China - Contact
Power: 3 Phase (50Hz) 380VAC
Overvoltage protection: 380~460VAC, delay time: 1.5~4s (adjustable)
Undervoltage protection: 300~380VAC, delay time: 2~9s (adjustable)
Accuracy with voltage: ±5%
Phase failure: Power supply voltage < 60%Ue and Phase sequence protection 2s
Contact capacity: AC380V 3A
Power Consumption: 1W
Electrical endurance: 10⁵ (not more than rated load)
Operating Temperature Range: -5°C~+40°
Dimensions: 11.3x 4.5x7cm
Weight: 300g
