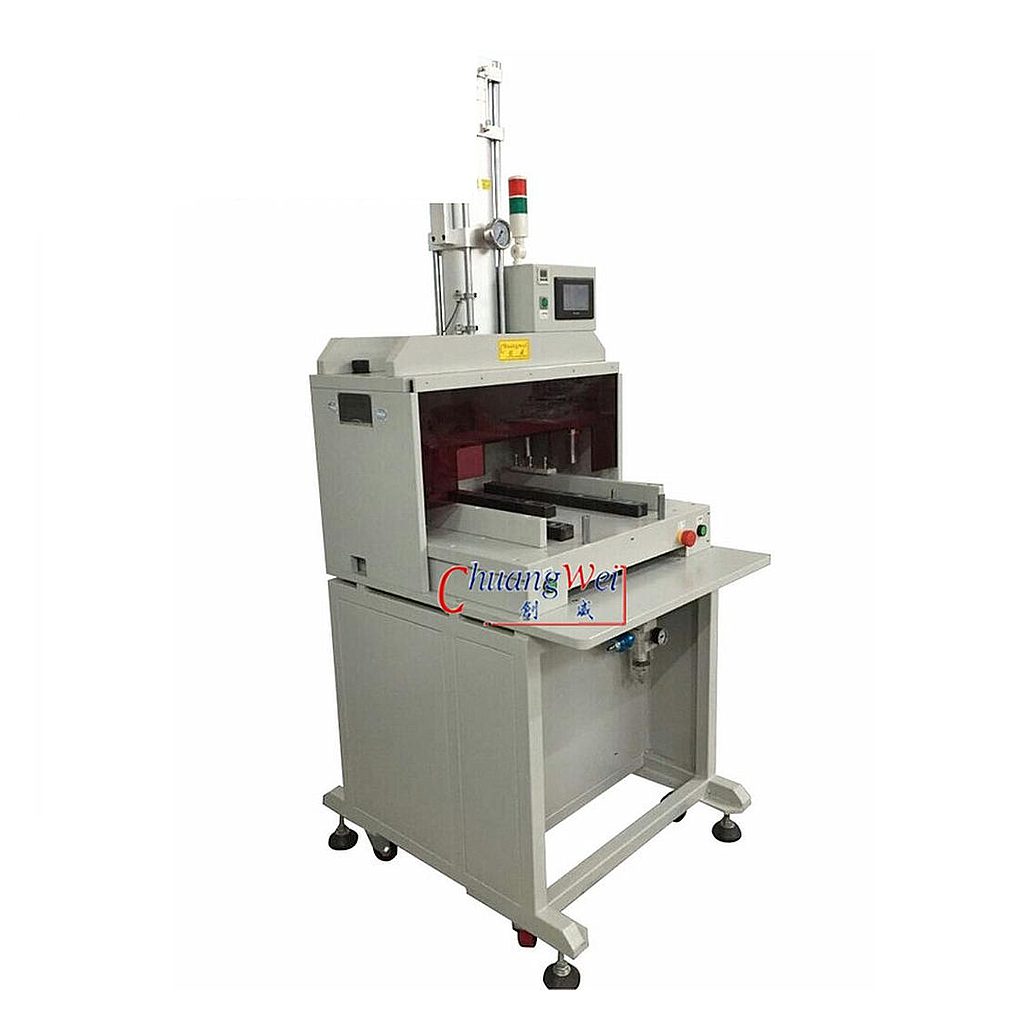

Working area:330*220mm
Working pressure: 0.45-0.7Mpa
Machine dimension: 730*810*1760mm
Cutting precision: ±0.05mm
Cycle time: 7.5s/cycle
Weight: 650KG
Output: 8T
PCB/FPC thickness: 0.08-3.5MM
PCB/FPC material: FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode: Punching
Punch fixture: Die tooling(mold)
Working Property: LCD display, Automatically records the number of processed products, automatic punching
Transmission port: International standard
Instruction system: International standard instruction system
Operation Language: English
Stroke: 50MM
Mold height: 170MM
Shut height: 80MM
Flat area: 690*660MM
Flat thickness: 30MM
Power: 380/220V
Fuse : 3A
Composition: Punching machine, Air cylinder, Ottomans, etc
CWPE Features:
1.Machine has strong structure and moves easily with 4 Casters.
2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.
5.punching cutting semi-finished PCB with high efficiency.
6.mould and die can be made according to customer's request.
7.Apply to cut Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb
8.Use punching mould to cut with high efficiency
9.Can replace multiple mold for product
