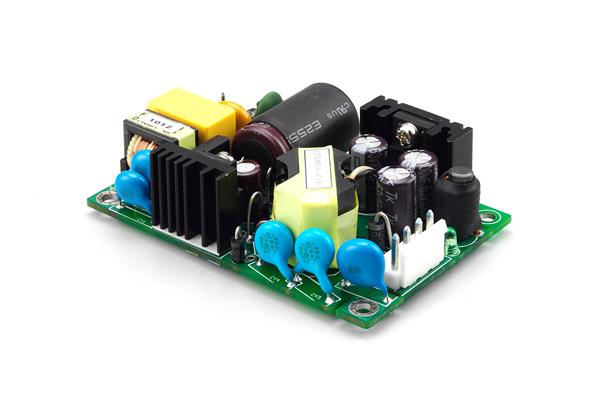

Cincon CFM40M150 Switching Supplies AC-DC Module, Medical & ITE, 40 Watt, Open Frame, 90-264VAC Input, 15VDC Output

Width: 50.8 mm (2 in)

Height: 23.1 mm (0.909 in)

Length: 76.2 mm (3 in)

Industry: Medical

Approvals: EN60601-1

Compliance: EN60601-1

Efficiency: 87 %

Unit Weight: 90 g

Output Power: 40 W

Input Voltage: 90 VAC to 264 VAC

Cooling Method: Convection

Mounting Style: Chassis

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 5.66 kVDC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 2.67 A

Output Voltage-Channel 1: 15 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
