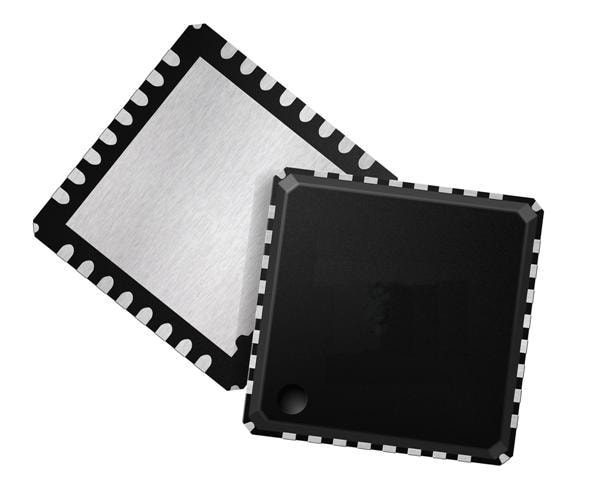

Cirrus Logic CS4265K-DNZR Audio CODEC, Stereo IC 24-bit 192kHz Str Cdc w/PGA &Inpt Mux
Manufacturer: Cirrus Logic Model: CS4265K-DNZR - Contact
Width: 5 mm
Height: 0.95 mm
Length: 5 mm
Resolution: 24 bit
Unit Weight: 188.600 mg
Interface Type: Serial (I2C)
Mounting Style: SMD/SMT
Number of ADCs: 2 ADC
Number of DACs: 2 DAC
THD plus Noise: - 95 dB ADC/- 90 dB DAC
Conversion Rate: 192 kHz
Moisture Sensitive: Yes
Number of ADC Inputs: 4 Input
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 3.13 V
Number of DAC Outputs: 2 Output
Operating Supply Voltage: 3.13 V to 5.25 V
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
