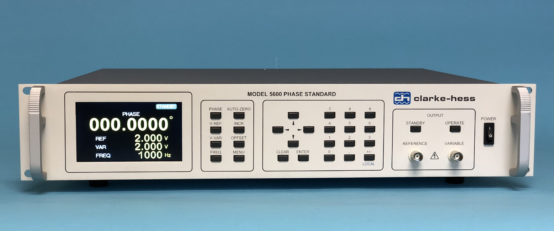

Clarke-hess 5600 Precision Phase Standard (1 Hz ~ 1MHz, 0.0000º ~ ±999.9999º)

Frequency Range: 1 Hz to 1MHz

Phase Angle Range: 0.0000º to ±999.9999º

Output Voltage Range (each channel): 50mV to 120V up to 200kHz; 50mV to 8V up to 1MHz

Phase Resolution: 0.0001º

Phase Accuracy

1Hz to 1kHz: ±5mº

>1kHz to 6.25kHz: ±10mº

>6.25kHz to 50kHz: ±15mº

>50kHz to 200kHz: ±40mº

>200kHz to 1MHz: ±[40 + 210(fkHz-200)÷800] mº

Voltage Accuracy (each channel)

1Hz to 50kHz: ±0.5% ±5mV

>50kHz to 100kHz: ±1% ±25mV

>100kHz to 200kHz: ±5% ±50mV

>200kHz to 1MHz: ±10%

Voltage Resolution (each channel)

50mV to 9.999V: 1mV

10V to 99.99V: 10mV

100V to 120V: 100mV

THD plus noise

Less than 0.02% from 1 Hz to 1kHz

Less than 0.05% from 1kHz to 20kHz

Less than 0.13% from 20kHz to 50kHz

Less than 0.30% from 50kHz to 600kHz

Output DC offset: Less than 0.5% of Voltage Setting plus 5mV

Maximum output current: 30mA

Output impedance: 0.5 ohms at 1kHz

Maximum output load capacitance: 3000pf

Warmup time: 30 minutes

General

Display: 4.3” High Resolution Color TFT

Digital Interface: IEEE-488.2, USB

Size : Approximately 17" W x 3.5" H x 13” D

Temperature range: Operating: 0° to 40°C Within specification: 23°C ± 5°

Humidity:  Within specification: 20% to 50% RH noncondensing

Storage Environment: Temperature Range: 0° to 50°C; Humidity Range: 15% to 80% RH noncondensing

Weight : Approximately 14.5 pounds

Power supply:  100V, 120V, 220V, 240Vrms, 47Hz to 63Hz, 30VA max
