Power force (DC): 6V
Control signal input:
1.Two sets of input signal for selection:
One set of stress sensor: 4~20mA
One set of force sensor: 1.0mV/V、1.5 mV/V、2.0 mV/V、3 mV/V、4 mV/V
2.Two sets of Encoder signal input
3. Input signal: upper limit, lower limit, emergency stop, goes up, go down, full speed.
Control signal output: One set of breakpoint output signal
Communication Interface: TCP/IP RJ45 Connecting Cable
Load cell Resolution: 31 bits
Load cell precision: 1/10,000
Encoder signal voltage: 5V
Encoder signal mode: Single- ended (Open Collector)、differential square wave(Line Driver)

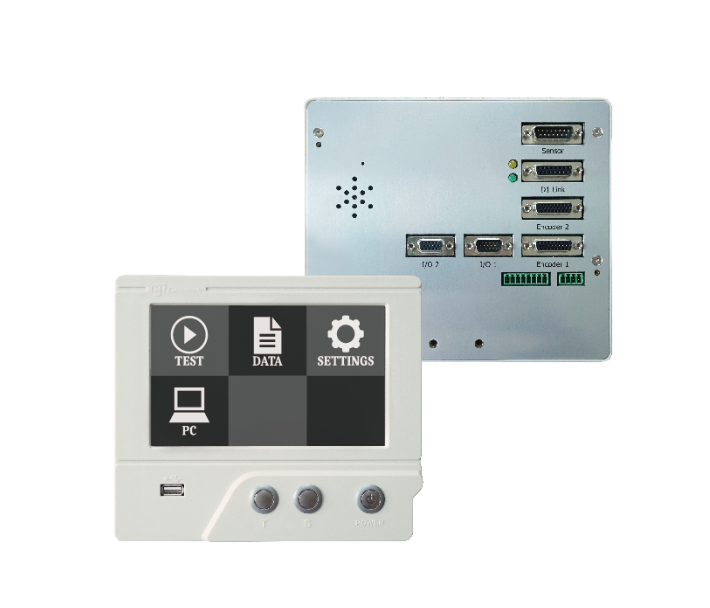

Display panel: 7 inch of TFT Color touch panel
Language selection: Chinese, English, Japanese
Data assess:
1.Can use USB to proceed with data access (can export test data to Excel for further data analysis)
2. Specified software is optional for data access
Data sampling rate: 2、5、10、25、50、100、400、1200Hz
Interface function:
1. Data Display: Force , Stress, Torque, Displacement, Time
2. Graph Display : Force, Displacement, Time, stress, strain
3. Data Analysis : maximum force, deformation percentage at maximum force point, stress at maximum force point, percentage of elongation at maximum force point, force at break point, deformation percentage at break point, stress at break point, interval average load, and so on.
4. Unit changeable (Metric system or imperial system)
Calibration setting:
1. Calibrated parameter setting can be provided
2. Can be used on various capacity of load cell and no need to re-calibration after replacement.
