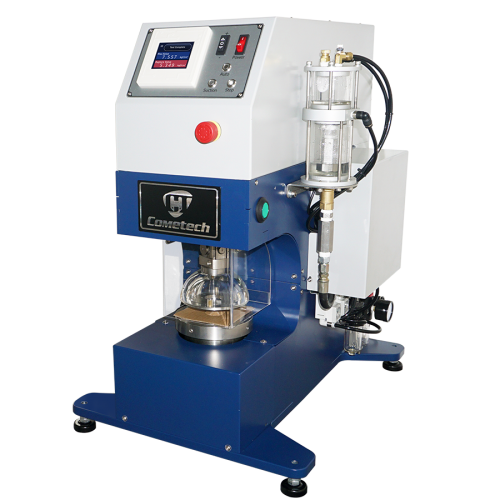

Type: High pressure/ Low pressure/ Textile
Test speed:
High pressure: 170 ± 15 ml/min
Low pressure： 95 ± 5 ml/min
Textile： 98 ± 4 ml/min
Pressure display: D1 Control touch panel
Capacity: 75 kg/c㎡
Platen diameter-Upper:
High pressure：31.5 ± 0.05 mm
Low pressure：30.5 ± 0.05 mm
Textile：30.5 ± 0.05mm
Platen diameter-Lower:
High pressure：31.5 ± 0.05 mm
Low pressure：33.1 ± 0.05 mm
Textile：30.5 ± 0.05mm
Gear position: Pressurization, neutral, return
Power: Single phase 110~240VAC，5A
Display
1. 2.8” touch screen
2. Curve graph display, test result saving
Air Exhaust Function: With built-in auto air exhaust function
Safety Design
1. safety cover
2. Abnormal pressure detection system
3. Automatic pressure reduction after test completion
Data Transmissions: Download through Wi-Fi
Calibration Compensation: Built-in deviation compensation system
Others
1.Aluminum foil：Only regular confirmation is required to prevent deviations.
2. Rubber diaphragm：Built-in compensates for pressure differences caused by diaphragm elasticity automatically.
