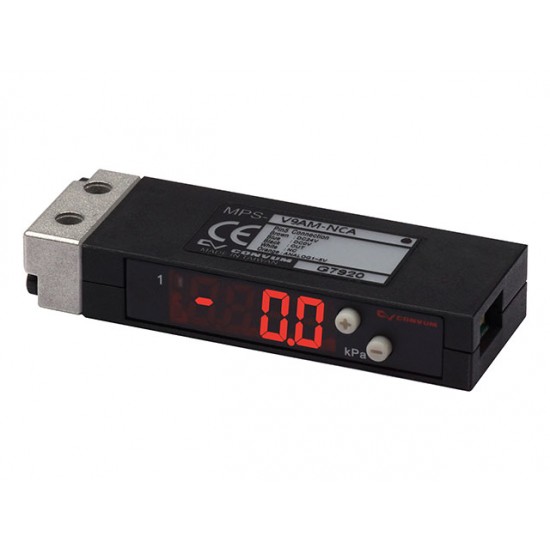

Convum MPS-C9AC-NCA Digital Display Pressure Sensors (-100 ~ 100 kPa)

NPN open collector

Port size: for CONVUM

Fluid: Air, non-corrosive gas, non-flammable gas

Diaphragm: Silicon diaphragm

Rated pressure range: -100 ~ 100 kPa

Setting pressure range: -101 ~ 101 kPa

Withstand pressure: 0.3 MPa

Ambient temperature range: 0 ~ 50°C (No freezing)

Ambient humidity range: 35 ~ 85% RH, non-condensation

Power supply voltage: DC12 ~ 24V ±10% (Ripple 5% or less)

Maximum power consumption: 40 mA

Output type: NPN open collector 1 output

Maximum load current: 125 mA

Analog output: 1 ~ 5V ±0.1% (Linearity 10% F.S.)

Repeatability: ±0.2% F.S.

Temperature characteristic: Less than ±2% F.S. (At standard temperature 25°C, range 0 ~ 50°C)

Response time: 1.5 ms or less

Hysteresis: Variable

Digital display: 4-digit, 7-segment LED

Operation indicator: OUT: Red LED ON (lighting)

Display resolution: 0.1 kPa

Protection class: IP40

Vibration resistance: 10 ~ 55Hz, total amplitude 1.5 mm, 50 m/s², 2 hours each direction of XYZ

Shock resistance: 980 m/s², 3 times each direction of XYZ

Electrical connection: Connector type

Cable: 5 lead wires, 24AWG, UL AWM 20276, 1000 mm

Connector: JST GHR-05V-S

Weight without cable: 15 g

Weight with cable: 32 g
