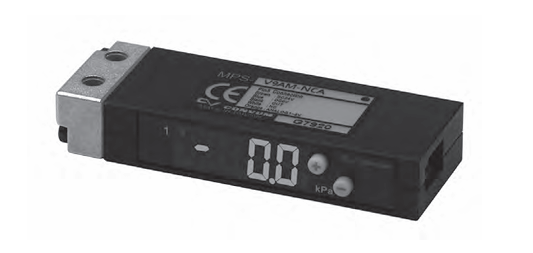

Convum MPS-C9AM-NCA Slim Type Digital Display Pressure Sensor (-100 ~ 100 kPa, M5 port, NPN)

Port Size: M5

Fluid: Air, non-corrosive gas, non-flammable gas

Diaphragm: Silicon diaphragm

Rated pressure range: -100 to 100 kPa

Setting pressure range: -101 to 101 kPa

Withstand pressure: 0.3 MPa

Ambient temperature: 0 to 50°C (No freezing)

Ambient humidity: 35 to 85% RH (No condensation)

Power supply voltage: DC12–24V, ripple (Vp-p) 5% or less

Maximum power consumption: 40 mA

Switch output: NPN open collector, 1 output

Maximum load current: 125 mA

Analog output: DC1–5V (±0.1), linearity 1.0% F.S.

Repeatability: ±0.2% F.S. (1 digit or less)

Temperature characteristic: Less than ±2% F.S. (at 25°C, range 0–50°C)

Response time: 1.5 ms or less

Hysteresis: Variable

Display (Digital): 4 digits, 7-segment red LED

Display (Operation): OUT: Red LED (ON lighting)

Display/set resolution: 1 kPa

IP rating: IP40

Vibration resistance: 10–55 Hz, total amplitude 1.5 mm, 50 m/s², 2 hours each direction (XYZ)

Shock resistance: 980 m/s², 3 times each direction (XYZ)

Electrical connection: Maker JST, Model GHR-05V-S

Cable: 5 lead wires, 24 AWG, UL AWM 20276, 1000 mm

Connector: Maker JST, Model GHR-05V-S

Weight:

Without cable: 15 g

With cable: 32 g
