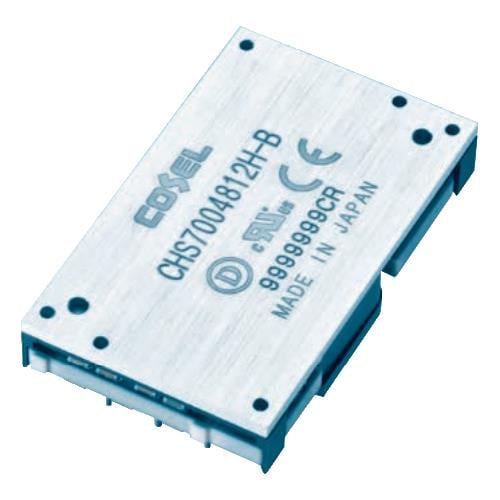

Cosel CHS7004812H-L8 Isolated Intermediate bus converter 702W 12V 58.5A 8 pin type
Manufacturer: Cosel Model: CHS7004812H-L8 - Contact
Width: 36.8 mm (1.449 in)
Height: 10.5 mm (0.413 in)
Length: 58.4 mm (2.299 in)
Industry: Industrial
Adjust Type: Fixed, Adjustable
Output Power: 702 W
Input Voltage: 36 V to 76 V
Mounting Style: Through Hole
Isolation Voltage: 2.25 kV
Number of Outputs: 1 Output
Input Voltage - Max: 76 V
Input Voltage - Min: 36 V
Input Voltage, Nominal: 48 V
Output Current-Channel 1: 58.5 A
Output Voltage-Channel 1: 12 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
