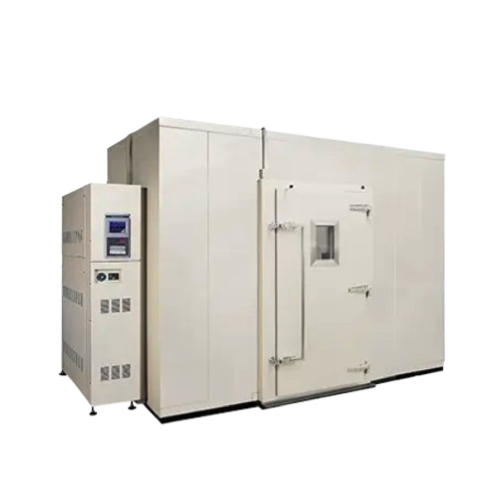

Walk-in type temperature and humidity chambers: Air-cooling Remote Condenser Type
Temperature range: -40 ~ 80 °C
Humidity range: 10 ~ 95% RH
JTM K09
Temperature/humidity fluctuation: ±0.3 °C/ ±2.5 %RH
Temperature/humidity gradient: ±2.5 °C/ ±8.0 %RH
Spatial temperature/humidity deviation: ±2.0 °C/ ±5.0 %RH
Temperature change rate (Rise): 2.0°C/min. (-28 ~ 68°C)
Temperature change rate (Drop): 1.0°C/min. (68 ~ -28°C)
Time to reach extreme temperatures (Rise): Within 60 min. (20 ~ 80°C)
Time to reach extreme temperatures (Drop): Within 200 min. (20 ~ -40°C)
Testing room floor space: 6.5 m²
External dimensions (W x D x H): 3,600 x 1,800 x 2,325 mm
Internal dimensions (W x D x H): 3,450 x 1,650 x 2,100 mm
Exterior/interior materials: Color steel plate (ivory) / stainless steel plate
Floor load capacity: 5.9 kN/m²
Door (width x height): 830 x 1,800 single opening, 1 location
Observation window (W x H): 190 x 320 door area, 1 location
Inner light (60 W capacity): 1 Qty.
Cable hole: ø50, 1 location (with rubber plug)
Temperature (humidity) control unit: EU-65MH-R × 1
Defrosting method: Off－cycle defrosting (refrigerator operation stopped, room temperature 5 to 40℃), temperature－increase defrosting (room temperature －40 to 5℃)
Power supply: Three-phase 200V 50/60Hz
Maximum load current: 65 A
ELB capacity: 100 A
Remote condenser
Model: RCR-R3S
Connected units: 2 Unit
External dimensions (W x D x H): 850 x 315 x 800 mm
Connection piping (Gas side): ø12.7 copper pipe × 2
Connection piping (Liquid side): ø9.52 copper pipe × 2
