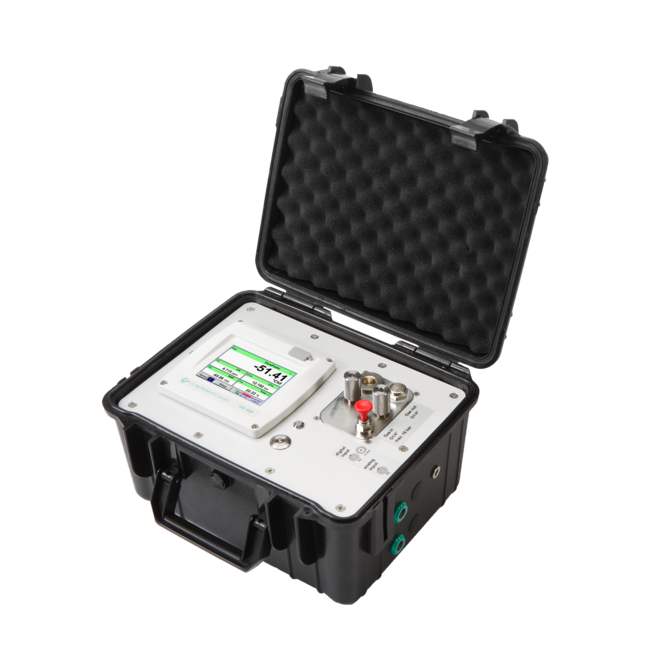

CS Instruments DP 400 mobile Mobile Dew Point Measurement with Pressure Sensor (-80…+50°Ctd, 0…16 bar)

Display: 3.5" touch screen

Measuring range: -80…+50 °Ctd; -20…+70 °C; 0…100% RH; 0…16 bar ± 0.5 %

Accuracy: ±1°C at 50…-20 °Ctd; ±2°C at -20…-50 °Ctd; ±3°C at -50…-80°Ctd

Moisture parameters: g/m³, mg/m³, ppm V/V, g/kg, °Ctdatm, % RH

Interface: USB interface

Data logger option: 16 GB SD memory card (100 million values)

Power supply for external sensors: Output voltage: 24 VDC ± 10%; Output current: 120 mA in continuous operation

Power supply: Internal rechargeable LiIon batteries, approx. 12h continuous operation, 4 h charging time

Process connection: 6 mm plug connections

Ambient temperature: 0…+50 °C

EMC: DIN EN 61326-1
