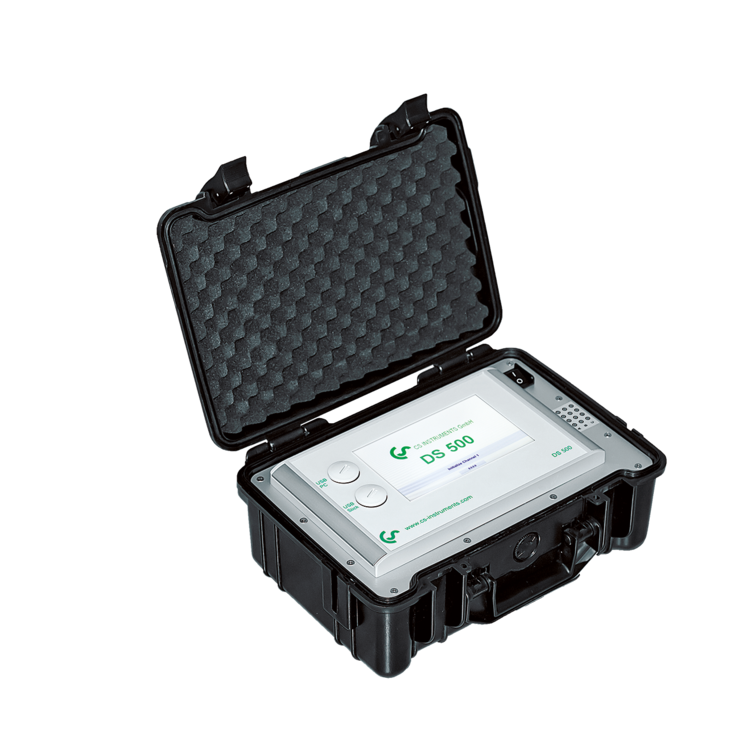

CS Instruments DS 500 mobile Mobile Chart Recorder (12 sensor inputs)

Case dimensions: 360x270x150 mm

Weight: 4.5 kg

Material: Diecast, front foil polyester, ABS

Sensor inputs: 12

Digital CS sensor for dew point and flow with SDI interface FA/SA series, digital third-party sensors RS485/ Modbus RTU.

Analogue CS Sensors for pressure, temperature, clamp-on ammeters preconfigured

Analogue third-party sensors 0/4…20mA, 0/4 - 20 mA, 0 - 1/10/30 V, pulse, Pt100 / Pt1000, KTY, counter

Voltage supply for sensor: 2 integrated mains units, each max. 24 VDC, 25W

Interfaces: USB stick, Ethernet / RS 485 Modbus RTU / TCP, SDI other bus systems on request, web server optionally, GSM module

Memory card: Memory size 16 GB Micro SD memory card

Power supply: 100 - 240 VAC, 50 - 60 Hz

Color screen: 7” touch panel TFT transmissive, graphics, curve, statistics

Accuracy: Please see sensor specifications

Operating Temperature: 0 - 50°C.

Storage temperature: -20 - 70°C.
