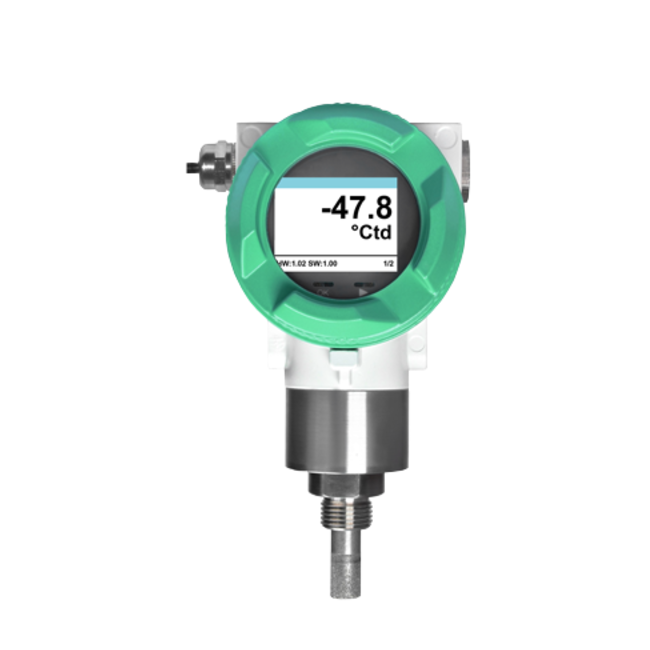

CS Instruments FA 550 Dew Point Sensor (-80… 20°Ctd)

Measuring range: -80…20°Ctd, -60…30°Ctd, -20…50°Ctd, or 0…100% RH

Accuracy: ±1°C at +50…-20°Ctd; ±2°C at -20…-50°Ctd; ±3°C at -50…-80°Ctd

Pressure range: -1…50 bar, Special version up to 350 bar or 500 bar

Power supply: 24 VDC (10…36 VDC)

Protection class: IP 67

EMC: In acc. with DIN EN 61326-1

Operating temperature: -20…50 °C

Outputs: Standard: Modbus-RTU, 4…20 mA active (not electrically isolated), alarm relay (max. 48 VDC, 0.5 A); Options: See order code

Burden: < 500 Ω

Material: Die-cast aluminum housing, sensor tube stainless steel 1.4571

Screw-in thread: G 1/2”, optional 5/8" UNF
