Measuring medium: Air, gases
Accuracy: (v..M. = from measured value):
± 1% for Qmin up to 0,2 Qmax
± 0,5% for 0,2 Qmax up to Qmax
Typically achievable: Accuracy when installing CS inlet and outlet sections:
± 0,75% for Qmin up to 0,2 Qmax
± 0,3% for 0,2 Qmax up to Qmax

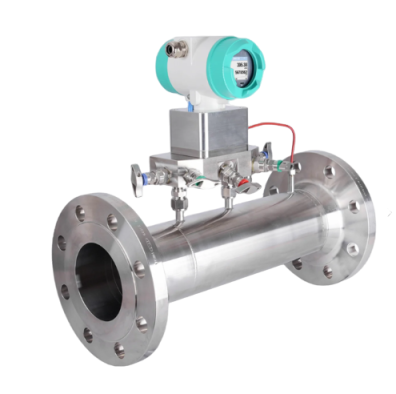

Measuring principle: Differential pressure, Venturi
Measuring range: 1:130
Response time: t 99: < 1 sec.
Medium temperature:-20°~+100 °C
Operating pressure: Max. 16 bar (g), on request 30 bar / 100 bar
Ambient temperature:-30°~+70 °C
Power supply: 18 ~ 36 VDC
Signal output: Standard: RS 485 (Modbus-RTU), 4~20 mA, pulse; Optional: Ethernet Interface, M-Bus
Process connection: Flange according to DIN EN 1092-1 or ANSI Flange
Installation conditions: In horizontal lines or in risers
