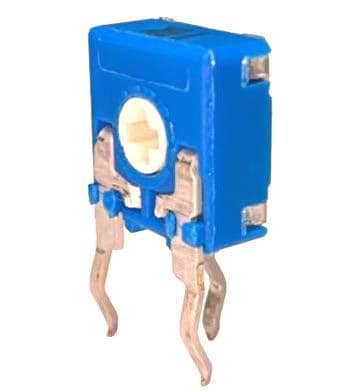

CTS Electronic Components 06TR4AA103CP 6 mm Trimmer Potentiometer 6mm Trimmer 10kOhm 20% horizontal through hole
Manufacturer: CTS Electronic Components Model: 06TR4AA103CP - Contact
Taper: Linear
Width: 3.45 mm
Height: 6.5 mm
Length: 6.5 mm
Tolerance: 20 %
Adjustment: Side Slot
Resistance: 10 kOhms
Orientation: Vertical
Element Type: Carbon
Power Rating: 100 mW (1/10 W)
Mounting Style: PCB Mount
Voltage Rating: 100 VDC
Number of Turns: 1 Turn
Termination Style: Through Hole
Temperature Coefficient: - 500 PPM / C, - 1000 PPM / C, + 200 PPM / C
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 25 C
