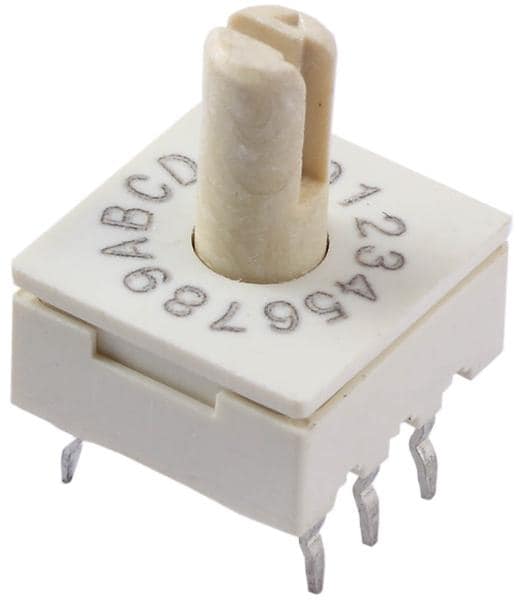

CTS Electronic Components 221ADC16 Rotary Switches 16 Pos. Thru Hole Shaft 6.86mm Ht.
Manufacturer: CTS Electronic Components Model: 221ADC16 - Contact
Life: 20000 Cycle
Actuator: Shaft
Illuminated: Non-Illuminated
Output Code: Hexadecimal
Unit Weight: 5.119 g
Actuator Style: Shaft
Current Rating: 100 mA
Mounting Style: Through Hole
Rotation Style: Clockwise, Counterclockwise
Termination Style: Solder Pin
Voltage Rating DC: 50 VDC
Dielectric Strength: 350 VAC
Number of Positions: 16 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
