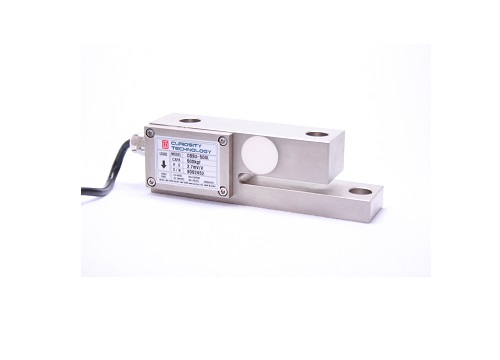

CURIOTEC CBSU-D-100K Digital Load Cell (100 kgf)
Manufacturer: CURIOTEC Model: CBSU-D-100K - Contact
Max.Capacity (kgf): 100
Rated output ( mV/V): 200 000±100
Zero balance ( mV/V): ±1
Combined error (%RO): 0.02
Repeatability (%RO): 0.01
Creep (30 min.) (%RO): 0.01
Temperature effec on
+ Zero value (%RO/10℃ ): 0.03
+ Output value (%RO/10℃ ): 0.015
Excitation (V ): 12
Resistance :
Insulation ( ㏁): ＞2000
Compensated temp.range (℃): -20~+80
Communication : RS-485 (4wire)
Max Transmission cable : 1000
