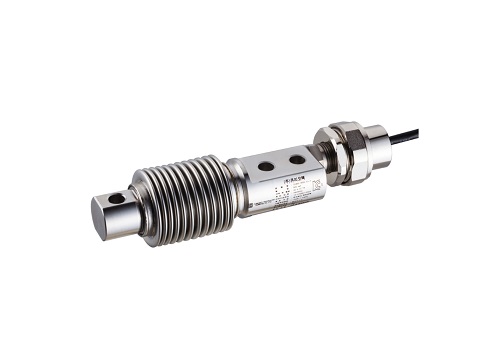

CURIOTEC CHBS-Ex d-100K Bending Beam Load Cell (100 kgf)
Manufacturer: CURIOTEC Model: CHBS-Ex d-100K - Contact
Max.Capacity (kgf): 100
Rated output ( mV/V): 2.0±0.005
Zero balance ( mV/V): 0.0±0.2
Combined error (%RO): 0.03
Repeatability (%RO): 0.01
Creep (30 min.) (%RO): 0.03
Temperature effec on
+ Zero value (%RO/10℃ ): 0.028
+ Output value (%RO/10℃ ): 0.015
Excitation
+ Recommend (V ): 10
+ Maximum ( V): 15
Resistance ():
+ Input (Ω ): 400±50
+ Output ( Ω): 350±3.5
Insulation ( ㏁): ＞2000 @50VDC
Compensated temp.range (℃): -10~+40
Operating temp, ( ℃ ): -20~+80
