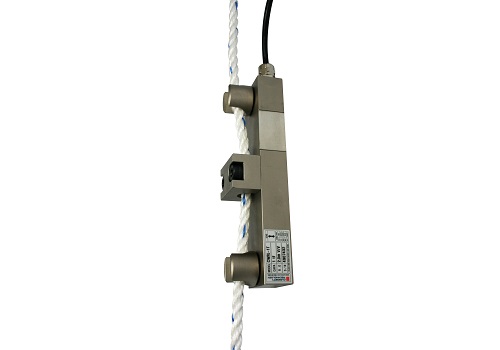

CURIOTEC CWRL-1T Tension Load Cell (1 Tf)
Manufacturer: CURIOTEC Model: CWRL-1T - Contact
Max.Capacity (Tf): 1
Rated output ( mV/V): 0.7 norminal
Zero balance ( mV/V): 0.0±0.1
Combined error (%): 2.0
Repeatability (%): 1.0
Creep (30 min.) (%): 1.0
Temperature effec on
+ Zero value (%/℃ ): 0.1
+ Output value (%/℃ ): 0.2
Excitation
+ Recommend (V ): 10
+ Maximum ( V): 15
Resistance ():
+ Input (Ω ): 400±50
+ Output ( Ω): 350±3.5
Insulation ( ㏁): ＞2000
Compensated temp.range (℃): -10~+40
Operating temp, ( ℃ ): -20~+80
