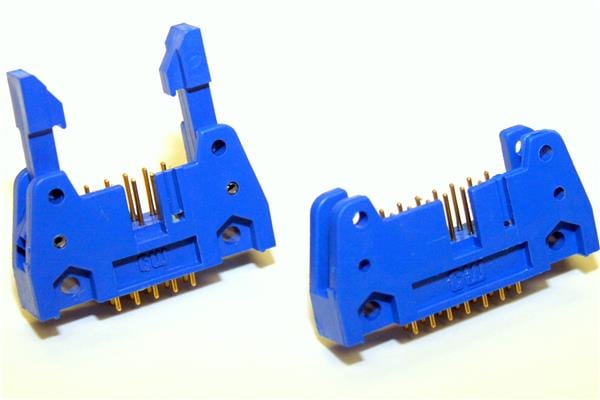

Pitch: 2.54 mm (0.1 in)
Application: Wire-to-Board
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 19.265 g
Housing Color: Blue
Latching Type: Ejector Latch
Contact Gender: Pin (Male)
Current Rating: 1 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Thermoplastic
Termination Style: Solder Pin
Mating Post Length: 6.1 mm (0.24 in)
Flammability Rating: UL 94 V-0
Number of Positions: 40 Position
Insulation Resistance: 5 GOhms
Termination Post Length: 3.94 mm (0.155 in)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
