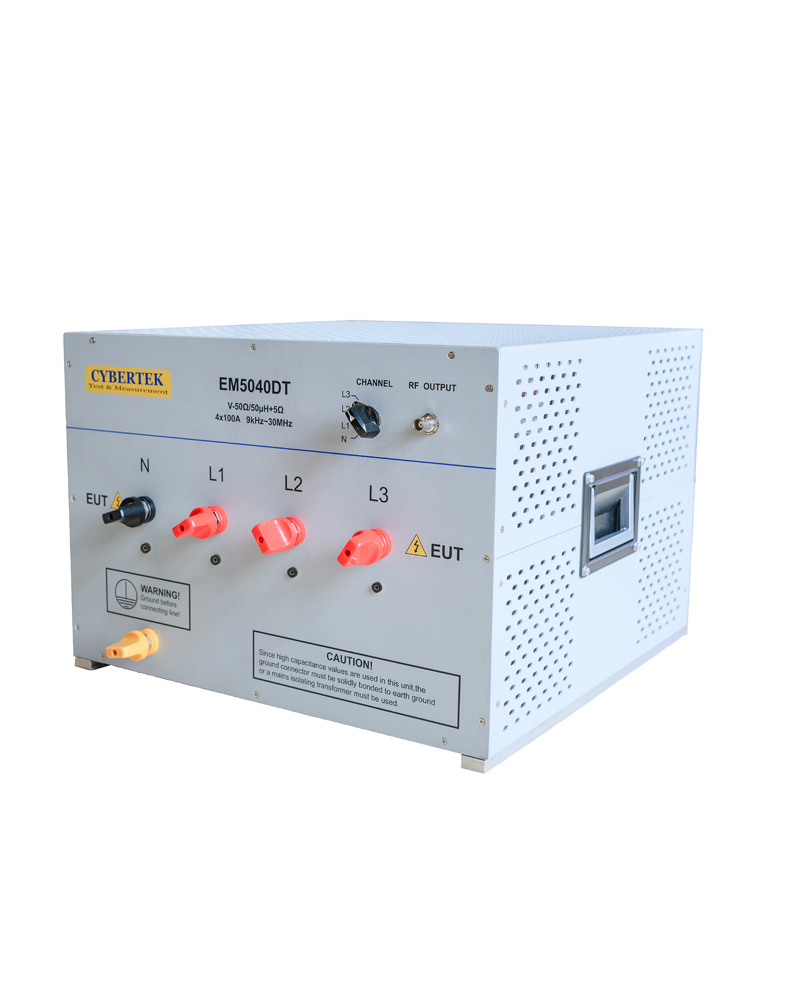

Cybertek EM5040DT Line Impedance Stabilization Network (9kHz～30MHz/100A, 50uH)

Frequency range: 9kHz—30MHz

Simulated impedance: (50uH+5Ω) ||50Ω Type V

Test line and phase number: Three phases four lines (L1/L2/L3/N)

Phase voltage/frequency range: 0～240VAC /  50～60Hz ±5%

DC voltage range: 0～375V DC

Power supply input/output connector: 10mm bolt

Output current: Rated 100A(In environment with good ventilation and convention)

Grounding protection: Bottom metal plate grounding; Front/back panel 10mm bolt grounding

Output connector: Standard 50Ω BNC female

Operating temperature range: 0℃～45℃

Storage temperature: -20℃～70℃

Safety standard: In accordance with EN61010-1

Dimensions(L*W*H): 446mm×446mm×319mm

Weight: 29kg
