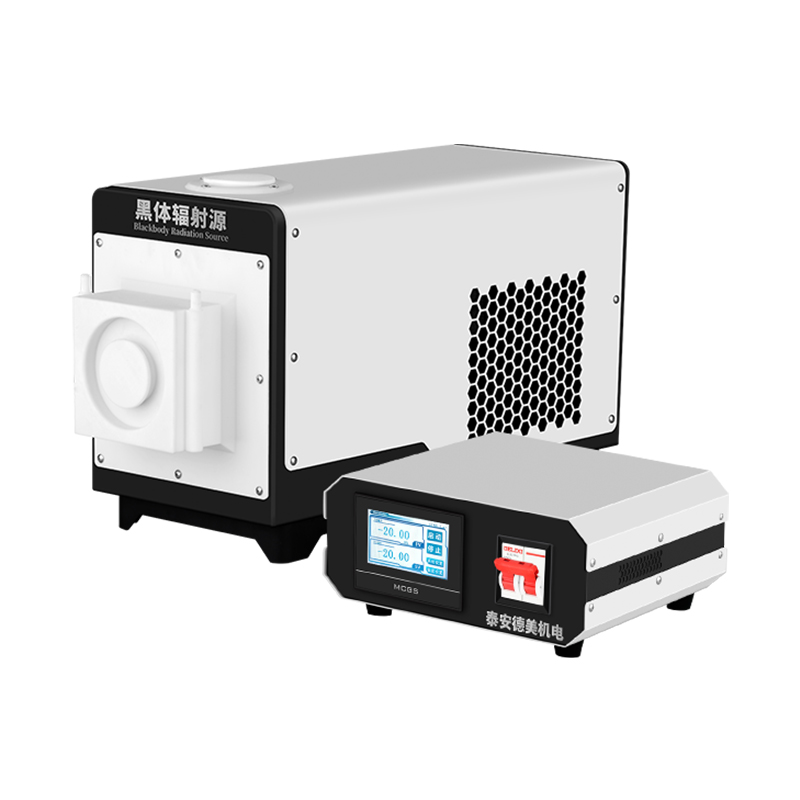

D-MEI DY-HT1-MF100 Low Temperature Surface Source Blackbody Furnace (-25℃ ~80℃ /-20℃ ~65℃, Φ100mm)
Manufacturer: D-MEI Model: DY-HT1-MF100 - Contact
Working Temperature: -25℃ ~80℃ /-20℃ ~65℃
Operating Method: Touch Screen
Temperature Resolution: 0.1℃ /0.01℃
Temperature Control: PID Automatic Control
Radiating Surface: Φ100mm
Emissivity: ≥ 0.95
Temperature Stability: ±（0.1 ～ 0.3）℃ /10min
Temperature Uniformity: ±（0.1 ~ 0.2）℃（@indoor temperature+5℃，2/3 central area）
Power Source: 220V AC 50HZ
Wire Diameter: ≥ 1.5 Square
Power: 500W
Size(L×W×H）: 315mm×200mm×340mm
Weight: 10Kg
Environment: ≤ 25℃ 15%RH ～ 50%RH；Up to 2000 meters
Remark: For Low-temperature surface source blackbody furnaces, when the set temperature is lower than the ambient temperature, in order to effectively avoid the problem of frost on the radiant surface of the blackbody furnace, the blackbody furnace comes with an anti-frost cover and nitrogen ventilation pipe.
Users need to prepare their own nitrogen and nitrogen pressure reducing valves. and other related supporting equipment
