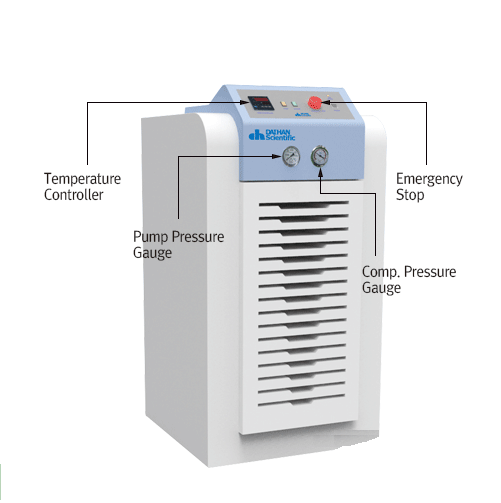

DaiHan DH.Chi0025 Heavy-duty Refrigerated External Circulator (-20℃+40℃, 17L; 230V)

- Temp. Range & Stability: －20℃ ~ +40℃-Range, ±0.2℃(at 15℃)-Stability

- Cool-Fluid. Filling Volume: 17 Lit max

- Useful for 1~50Lit Evaporators, etc.: for 1~20Lit Evaporator

- Refrigerator Capacity(HP): 1/2 HP

- Lid & Top Opening Dia:. Φ100 mm

- Fluid In/Out-let Connector: ISO RC 1/2" (English System AG 1/2") Thread, Stainless-steel

- Pump Power, Lift Height, (m):

Max. Flow Rate: 20 Lit/min

Max. Pressure & Lift: 1.0 bar; Max. Lift : 8m

- Cooling Capacity: 1.7 kW( +20℃) ; 0.87kW (0℃); 0.32kW (－20℃)

- External Dimension: 450×650×h900 mm

- Material: Stainless steel-Internal, Powder Coated steel-External

- Electrical Reqts. 1 Phase 230V, 50 Hz
