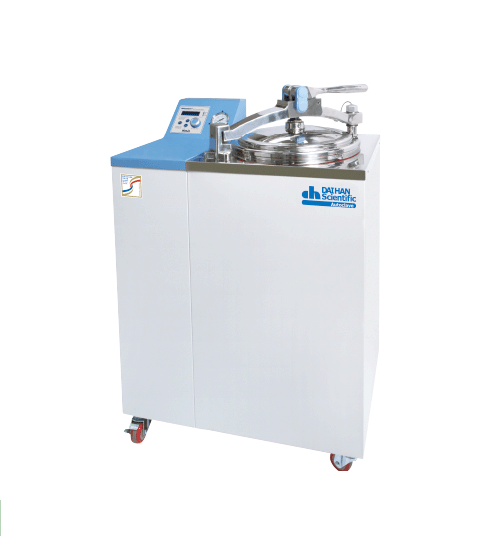

DaiHan DH.WACR3100P Digital Fuzzy-control Autoclave (100L; 2kWx2; PED Cert; Built in Recorder; 3 phase)

- Capacity: 100 Lit

- Temp. Range & Accuracy: Ambient 5°C to 132°C, ±0.5°C at 121°C

- Pressure & Gauge:  1.2 kgf/cm2 at 121°C/2.0 kgf/cm2 at 132°C, 0 ~ 3 kgf/cm2

- Sterilization mode:  Solid- or Liquid-mode, chosen by a customer

- Heating Power / Consumption: 2 kW x2

- Timer & Alarm: 60min, Error status & Timer-end

- Display: Digital LCD with Back-Light Function

- Controller: Digital Fuzzy-Control System (Fully Automatic)

- Door & Closing System: Lever-type Sliding Door / Safety Electronic Door Closing System

- Safety Circuit: Over-Temp./-Pressure/-Current protection, Sensor Error Detection

- Recorder with Paper: Recorder Model: Thermal printer with 1 Record Paper Roll: w58 × Ø40 mm; 1000 Sterilization Cycle Data / roll (Date, Temperature, Pressure, Time, Error Status, etc.)

- Material: Stainless Steel (#304)-Pressure Vessel, Powder Coated Steel-External

- Basket: 2 Stainless - Steel Wire Baskets

- Basket Dimension (mm): Ø420 x h240

- Dimension (w x d x h):

Inner (mm): Ø450 x h630

Outer (mm): 810x580x1140mm

- Gross weight (kg): 170 kg

- Power Supply: 3 phase with Terminal Block
