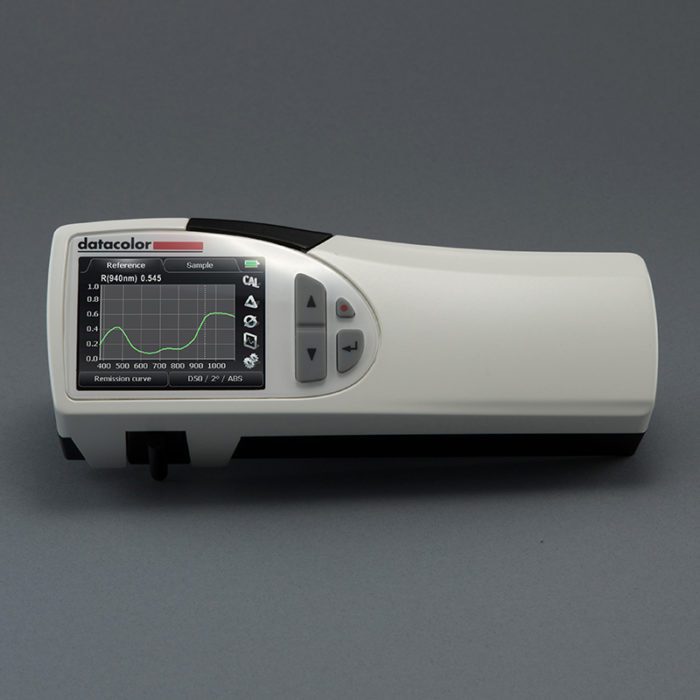

Instrument Type: Portable Spectrophotometer
Measurement Geometry: 0º:45º x to DIN 5033
Light Source: Tungsten
Wavelength Range: 380 to 1100 nm
Effective Bandwidth: 10 nm
Wavelength Resolution: 3.3 nm
Spectral Analyzer: 256 pixel diode array
Color Repeatability: Density: 0.01D; Colorimetric: 0.3 CIElab dE*ab; Near IR: 0.3%R (700 to 1000 nm)
Inter-Instrument Agreement: Density: 0.01D; Colorimetric: 0.3 CIElab dE*ab; Near IR: +/-0.5%R (700 to 1000 nm)
Aperture Plates: 3mm measuring
Operating Environment: Absolute Operating Environment RS232; '0º to 40º C, 20-85% RH, non-condensing
Physical Specifications:
Weight: 1.0 lbs (480g)
Dimensions: 2.6 x 2.2 x 7.5 (65 x 55x 190mm)
Power Requirements: 7.5DC (from PS)/4.8DC (from BAT)
Power Consumption: 2.0A (from PS)/2100mAh (from BAT)
Storage: 0º to 40º C
Additional Technical Specifications:
Data Interface: USB
Spectrometer Principle: Monolithic, compact spectrophotometer with imaging grating
Battery: Long Life NiMH
Effective Bandwidth: 10nm
