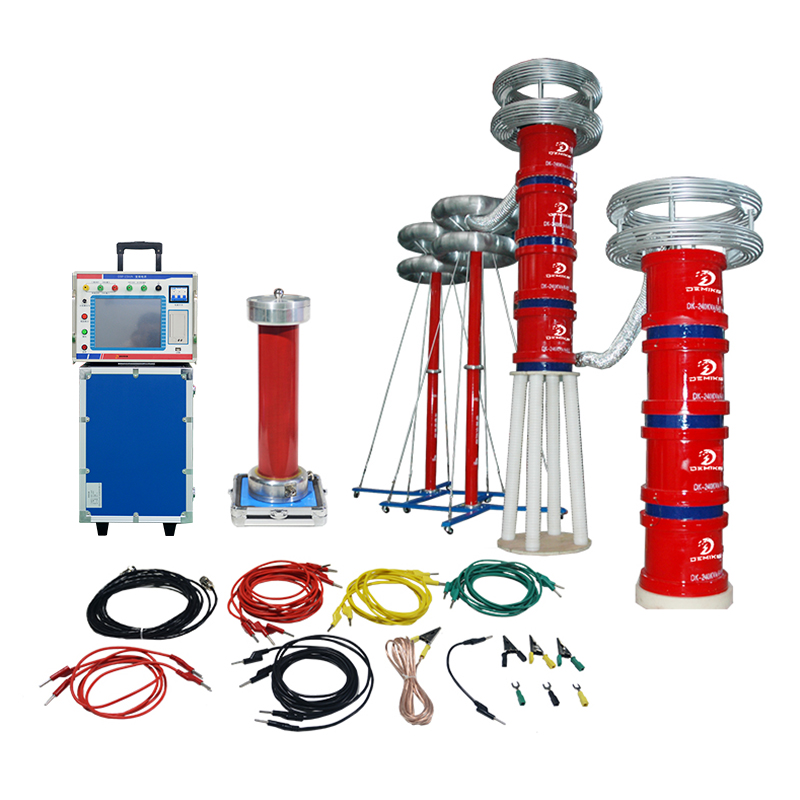

DEMIKS DBP-BD-1600/800/200 Variable Frequency Resonance Test System (60kW, 800kV)

Rated Output Voltage: ≤0~1000kV

Output Frequency: 30~300Hz

Resonate Voltage Waveform: Sine wave, distortion≤1.0%

Working Mode: Continuous working

Quality Factor: 30~90

Frequency Adjustment Sensitivity: 0.1Hz

Instability: <0.05%

Power Source

Single phase 220V or three phase 380V±10%

Power frequency 50Hz/60Hz±5%

Application (10kV~500kV transformer substation AC voltage   withstand equipment, frequency 30~300Hz)

Frequency Power Source: 60kW

Resonant Reactor: 200kV/2A four sets(oil immersed)

Excitation transformer: 60kVA(dry type)

Divider: 800kV

Application

≤80000kVA 220kV transformer

≤50000kVA 110kV transformer

500kV GIS, PT, CT ect.

220kV switch, busbar, PT, CT ect.

110kV(400m㎡) cable ≤1.5km

220kV(400m㎡) cable ≤1.0km
