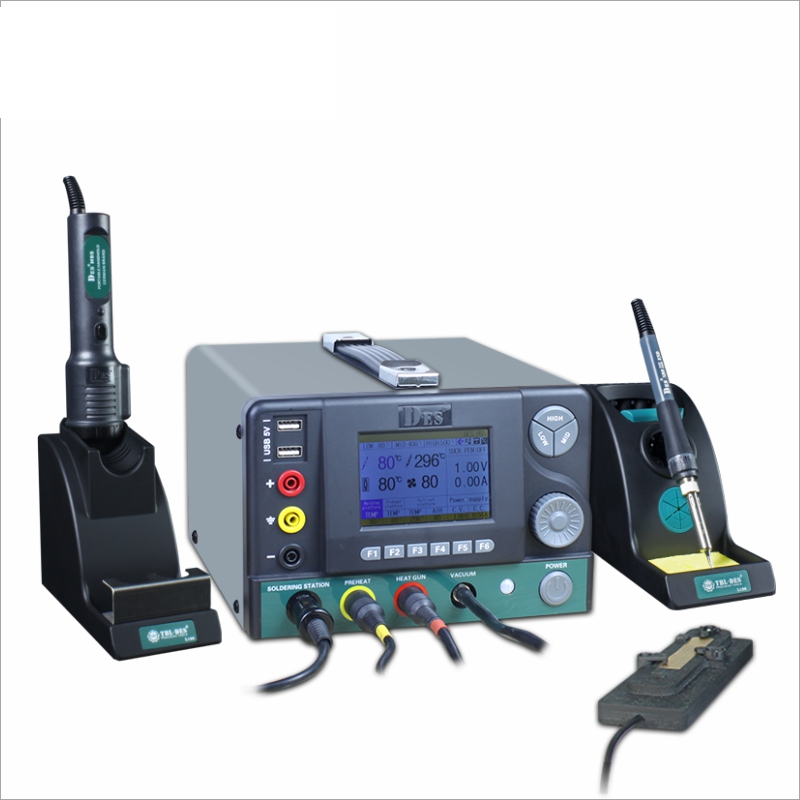

5 in 1 Multi-functional Integrated Maintenance Platform (H95)
Model: H95
Display: Intelligent LCD display
Peak power: 1800W
Voltage: 220VAC/50Hz, 110VAC/60Hz
Main machine dimension: 230(L) × 197(W) × 140(H) mm
Machine weight: 2.37 kg
Soldering Iron (S90 handle)
Power consumption: 90W
Temperature range: 80–500°C
Resistance between tip and ground: ≤2Ω
Tip to ground voltage: ≤2 mV
Tip model: Compatible with T series soldering tip
Heating element: A1529
Output voltage: 24V
High temperature cuff: GT04
Cable length: 1.2 m
Handle weight: 100 g
Hot Air Gun (H95)
Peak power: 1500W
Temperature range: 80–500°C
Temperature stability: ±5°C
Air volume: Level 10–80
DC turbine fan: 12V / 8300 rpm
High temperature cuff: GP5 / GP6 (optional)
Heating element: A1526B (220V) / A1525B (110V)
Output voltage: 220V / 110V
Handle cable length: 1.2 m
Weight: 200 g
Vacuum Suck Pen
Power consumption: 10W
Pump: Diaphragm type
Max vacuum pressure: 280 mmHg
Suction pen size: 123(L) × 10 mm
Flexible pipe: 1200(L) × 6 mm
Weight: 25 g
Nozzle size: 0.4 mm / 1.1 mm
Outer diameter: 3 mm / 10 mm
Material: Conductive silicone rubber
Heating Platform (P1 / P2 / P3)
Temperature range: 80–300°C (176–572°F)
P1: 90W, A1529, 165 × 65 × 25 mm, 430 g
P2: 80W, A1540×2, 165 × 65 × 20 mm, 500 g
P3: 80W, A1540×2, 126 × 60 × 15 mm, 501 g
Tip to ground resistance: ≤2Ω
Tip to ground voltage: ≤2 mV
Output voltage: 24V
Adjustable Stabilized Power Supply
Output voltage: 1.00–20.00V
Output current: 0.01–5.00A
Power: 100W
Load regulation: Voltage 0.02% + 2mV / Current 0.02% + 2mA
Setting accuracy: Voltage 0.1% / Current 0.1%
Display accuracy: Voltage 0.1% / Current 0.1%
