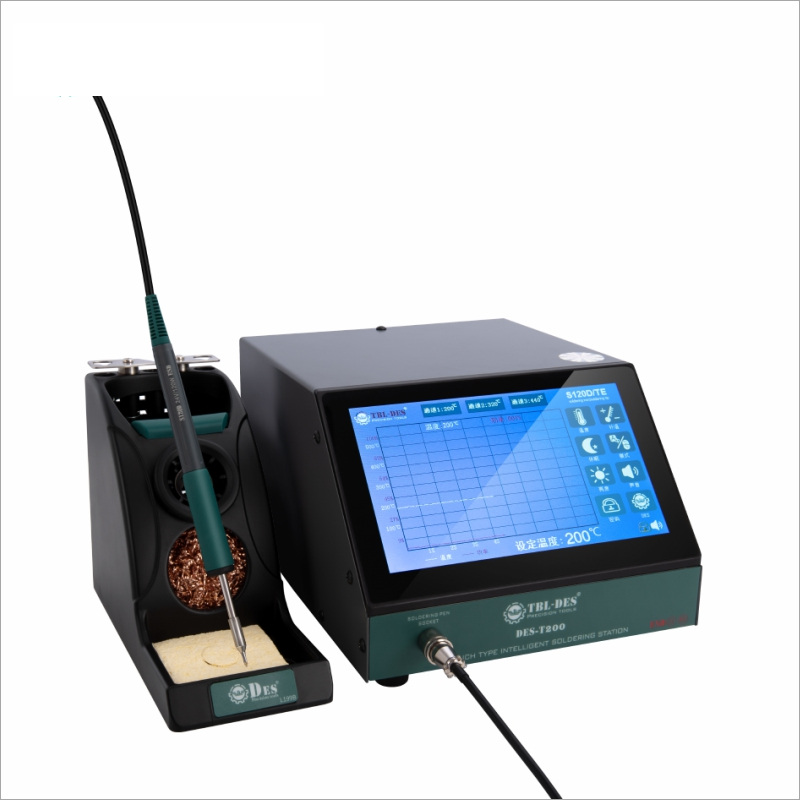

Touch Type Precision Soldering Station (DES-T200)
Model: DES-T200
Display: TFT touch capacitor display
Peak power: 120W
Voltage: AC100–230V 50/60Hz
Host size: 218(L) × 184(W) × 137(H) mm
Body weight: 2 kg
Standard Soldering Iron Handle (DES-S120D)
Model: DES-S120D
Temperature range: 80–450°C (176–842°F)
Power consumption: 120W
Integrated soldering tip: DES TE Series
Impedance to ground: ≤2Ω
Voltage to ground: ≤2 mV
Voltage: 24V
Wire length: 1.5 m
Weight: 70 g
Soldering Iron Handle (Purchase Separately – DES-S120C)
Model: DES-S120C
Temperature range: 80–450°C (176–842°F)
Power consumption: 40W
Integrated soldering tip: DES TF Series
Impedance to ground: ≤2Ω
Voltage to ground: ≤2 mV
Voltage: 12V
Wire length: 1.5 m
Weight: 65 g
7-inch touch capacitive screen, full touch humanized operating system.
Intelligent identification of soldering iron handle model and soldering iron tip series (the soldering iron handle model and soldering tip series are: S120D/TE & S120C/TF).
Three levels of editable temperature for quick selection, real-time display of temperature and power dynamic curve monitoring.
Smart sleep function: When not in use for 30s, the screen will darken and the temperature of the soldering iron will slowly drop. When the handle is picked up again, the bright screen will heat up to the set temperature. When the soldering iron is not in use (can be set from 30 minutes to 180 minutes), it will automatically shut down. If you need to use it again, start the power switch.
The handle is light and handy, and it can be welded in one second.
Microcomputer temperature compensation, static temperature error is less than ±1°C.
The password management system prevents others from changing the function settings at will.
It comes with two display modes in Chinese and English.
The handle is light and handy, and it can be welded in one second.
The design of dismantling static electricity is particularly safe for sensitive components.
The plug-in integrated soldering iron tip is adopted, which is convenient and quick to replace.
