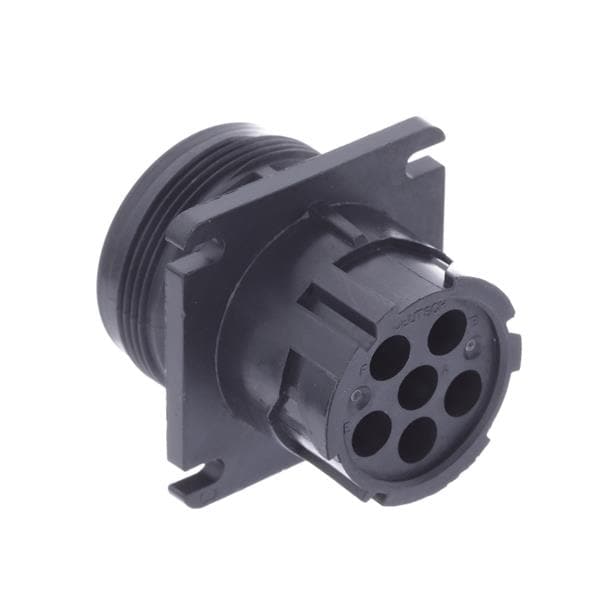

DEUTSCH - TE Connectivity HD10-6-12P-E004 6-Way SQ FG REC ASM
Manufacturer: DEUTSCH - TE Connectivity Model: HD10-6-12P-E004 - Contact
Color: Black
Width: 38.94 mm
Gender: Receptacle (Female)
Height: 38.94 mm
Length: 41.58 mm
Material: Plastic
Dimensions: 38.94 mm x 38.94 mm x 41.58 mm
Insulation: Insulated
Unit Weight: 33.670 g
Mating Gender: Plug
Contact Gender: Without Pin Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Mounting Flange
Voltage Rating: 250 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 14 AWG
Housing Material: Plastic
Wire Gauge Range: 10 AWG to 14 AWG
Termination Style: Crimp
Ingress Protection: IP68, IP6K9K
Mating Part Number: HD16-6-12SX-XXXX
Number of Positions: 6 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
