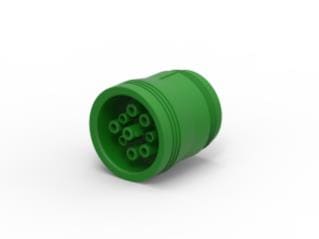

DEUTSCH - TE Connectivity HD17-9-1939S-P080 Connectors PLUG ASM
Manufacturer: DEUTSCH - TE Connectivity Model: HD17-9-1939S-P080 - Contact
Color: Green
Width: 40.51 mm
Gender: Plug (Male)
Height: 40.51 mm
Material: Plastic
Dimensions: 40.51 mm x 40.51 mm x 41.55 mm
Insulation: Insulated
Unit Weight: 42.740 g
REACH - SVHC: Details
Mating Gender: Receptacle
Contact Gender: Without Socket Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Crimp
Ingress Protection: IP68, IP6K9K
Mating Part Number: HD10-9-1939PX, HD14-9-1939PX
Number of Positions: 9 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
