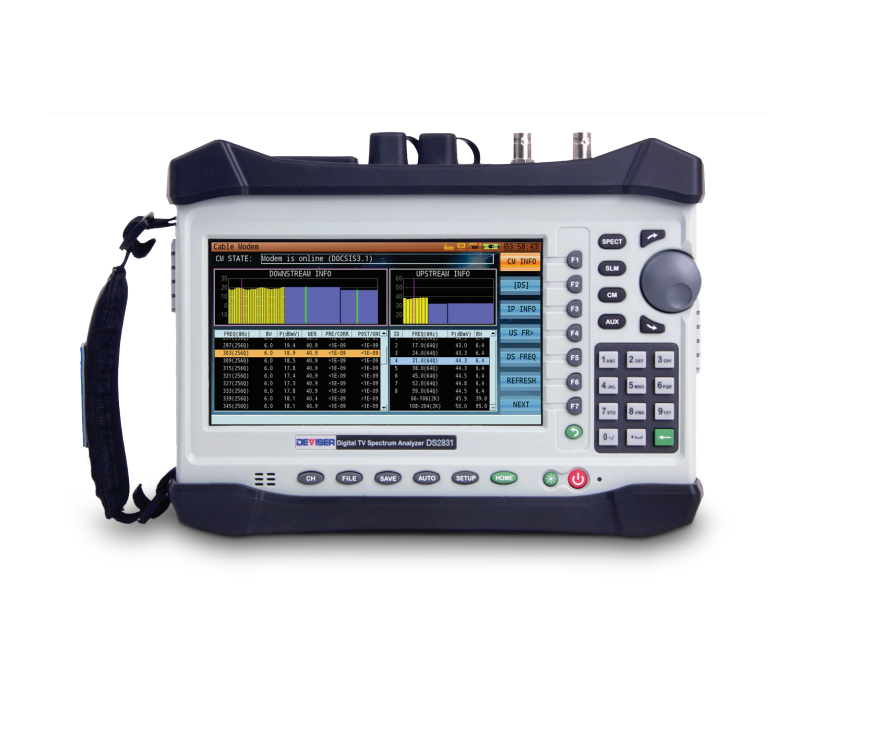

Deviser DS2831 Digital TV Spectrum Analyzer (4 – 1.22 GHz)

- Real spectrum analyzer performance from 4 – 1.22 GHz (optional extension to 2.15 GHz)

- Downstream & Upstream Spectrum Analysis cover DOCSIS 3.1 frequency bands

- Spectrum Persistence Analysis: any frequency band, max span 206 MHz

- In-service Error Vector Spectrum identifies interference under OFDM and SC-QAM carriers with no interruptions in service

- ITU-T J 83 Annex A/B/C/D, QAM; auto-detects channel parameters

- Full DOCSIS3.1 capabilities with downstream OFDM and 32x SC-QAM bonded carriers, and upstream OFDM transmit feature with 8x SC-QAM bonded carriers

- Forward/Reverse passive non-intrusive sweep (does not require US sweep receivers for up to 51.2 MHz of high resolution sweep response in the Upstream path)

- Integrated Upstream Signal Generator (J.83A/B-FEC)

- Transport stream analysis with TR 101 290 Monitoring,  auto-generated program lists, and program-channel mapping

- Gated Measurements: in-service CCN, CSO, CTB, CLDI, DG/DP, DOM, ICR tests

- Optical features such as OPM, VFL, and an optional Fiberscope

- Highly responsive capacitive touchscreen

- Auto Test

- Deviser EDGE asset and test data management software
