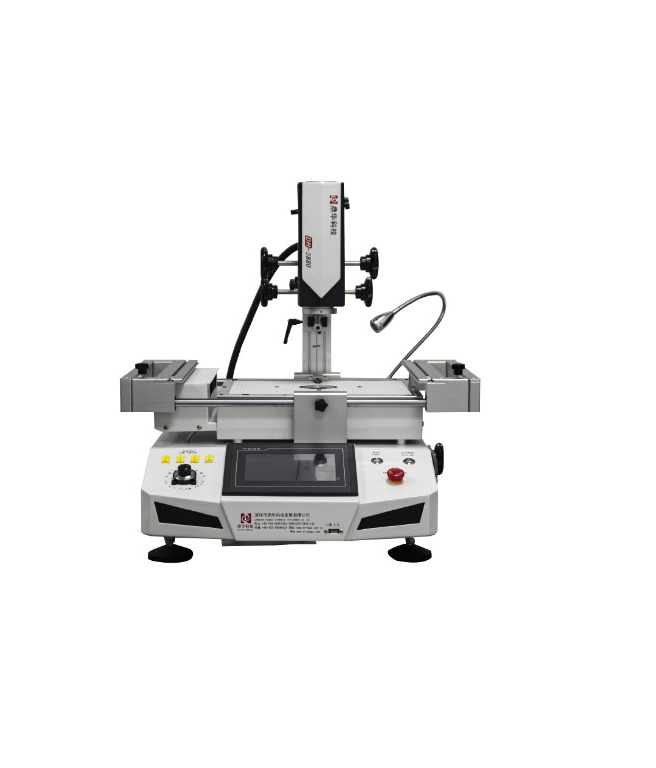

Dinghua DH-5880 BGA Rework Station
Manufacturer: DINGHUA TECHNOLOGY Model: DH-5880 - Contact
Power: 5200W
Heating power (upper): 1200W
Heating power (lower): Second temperature zone: 1200W, third temperature zone: 2700W
Power supply: AC220V±10% 50Hz
Positioning: Laser positioning, V-shaped card slot, and external multifunctional clamp
Temperature control: K-type thermocouple (K Sensor) with closed-loop control
Temperature control accuracy: ±2°C
PCB size: Maximum 420 × 370 mm, minimum 10 × 10 mm
Applicable chip: BGA chip 2X2-80X80mm
Minimum chip distance: 0.15mm
External temperature sensor: Expandable (optional)
Machine weight: 48kg
