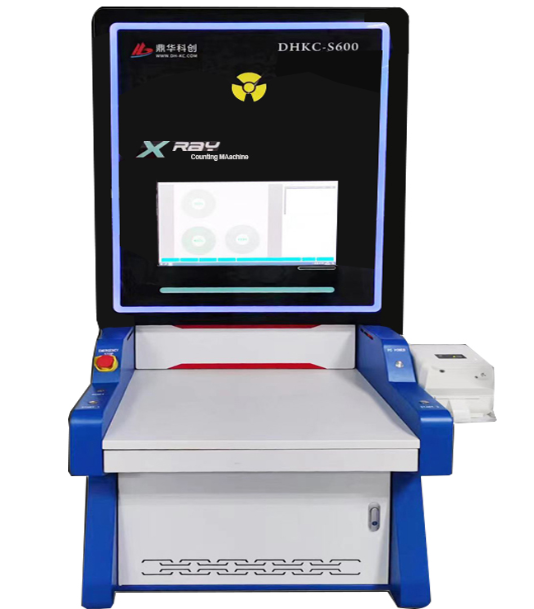

DINGHUA TECHNOLOGY DHKC-S600 Xray counting machine (30um, 50kV)
Manufacturer: DINGHUA TECHNOLOGY Model: DHKC-S600 - Contact
X-ray Light tube type: Closed type
Spatial division ratio: 30um
Light tube voltage: 50kv（actual 80kv,limited 50KV）
Light tube current: 1000uA
Point material speed: 6~9 S /time（Chip 01002, including labels printed）
Accuracy rate: 99.99%（0201 for instance）
Maximum diameter of the available material plate: 415mm（2-17 inches）
Inspectable maximum material plate height: 1-80mm
imaging precision: 85um
Imaging size: 430*430mm
resolution rate: 3072*3072px
Machine size（L*W*H): 1040*1480*2030mm
machine weight: 500kg
operating system: Windows 10
Power-supply/Rated power: AC110-220V50-60HZ 1200W
Radiation safety test: <1 uSV/H
