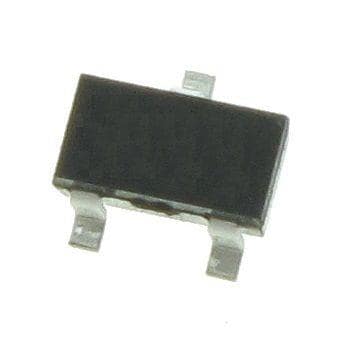

Diodes Incorporated AH1809-W-7 Omnipolar Hall Effect Switch 2.5V to 5.5V 24uW
Manufacturer: Diodes Incorporated Model: AH1809-W-7 - Contact
Unit Weight: 86.094 mg
Mounting Style: SMD/SMT
Output Voltage: 100 mV
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.5 V
Maximum Output Current: 2.5 mA
Pd - Power Dissipation: 230 mW
Operating Point Min/Max: 90 G, 185 G
Operating Supply Current: 8 uA
Operating Supply Voltage: 5 V
Release Point Min/Max (Brp): 80 G, 170 G
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
