Diodes Incorporated AL9902FDF-13 Off-Line LED Driver LED Offline Driver Up to 300kHz
Manufacturer: Diodes Incorporated Model: AL9902FDF-13 - Contact
Features: PWM Dimming, Open LED Protection
Topology: Boost, Buck
Output Type: Constant Current
Unit Weight: 340.215 mg
Input Voltage: 20 V to 500 V

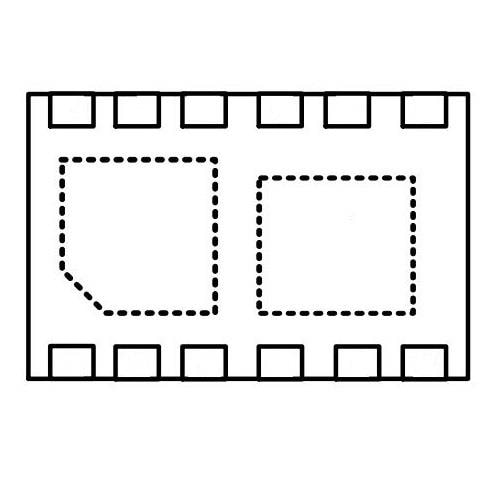

Mounting Style: SMD/SMT
Output Current: 400 mA
Output Voltage: Adjustable
Number of Outputs: 1 Output
Number of Channels: 1 Channel
Input Voltage - Max: 500 V
Input Voltage - Min: 20 V
Operating Frequency: 300 kHz
Supply Current - Max: 1 mA
Pd - Power Dissipation: 1 W
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
