Polarity: Positive
Output Type: Fixed

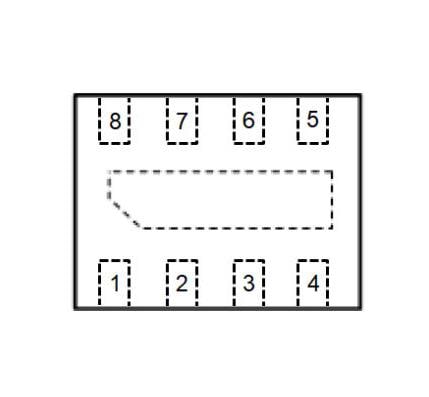

Mounting Style: SMD/SMT
Output Current: 300 mA
Output Voltage: 1.2 V, 2.8 V
Dropout Voltage: 260 mV, 510 mV
Line Regulation: 0.02 %/V
Load Regulation: 15 mV
Number of Outputs: 4 Output
Quiescent Current: 80 uA
Input Voltage - Max: 5.25 V
Input Voltage - Min: 1.7 V
Dropout Voltage - Max: 340 mV, 800 mV
Pd - Power Dissipation: 600 mW
Operating Supply Current: 10 nA
Voltage Regulation Accuracy: 1 %
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 75 dB
