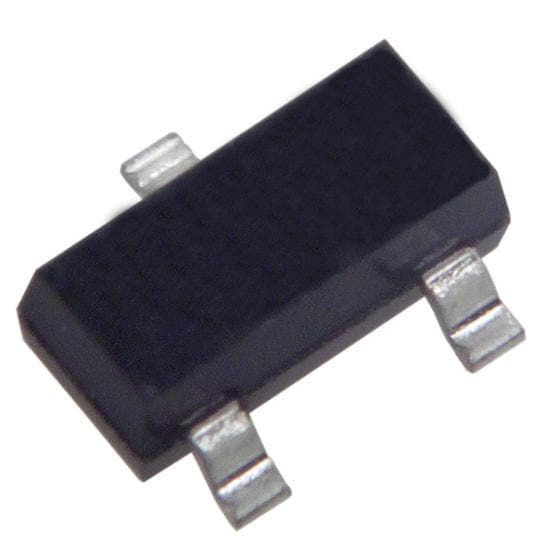

Diodes Incorporated LM4040B50FTA Precision Shunt Voltage References 5V 0.2% SHUNT REFERENCE
Manufacturer: Diodes Incorporated Model: LM4040B50FTA - Contact
Topology: Shunt References
Unit Weight: 8 mg
Mounting Style: SMD/SMT
Output Voltage: 5 V
Reference Type: Shunt Precision References
Initial Accuracy: 0.2 %
Shunt Current - Max: 15 mA
Shunt Current - Min: 60 uA
Supply Current - Max: 10 mA
Temperature Coefficient: 100 PPM / C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
