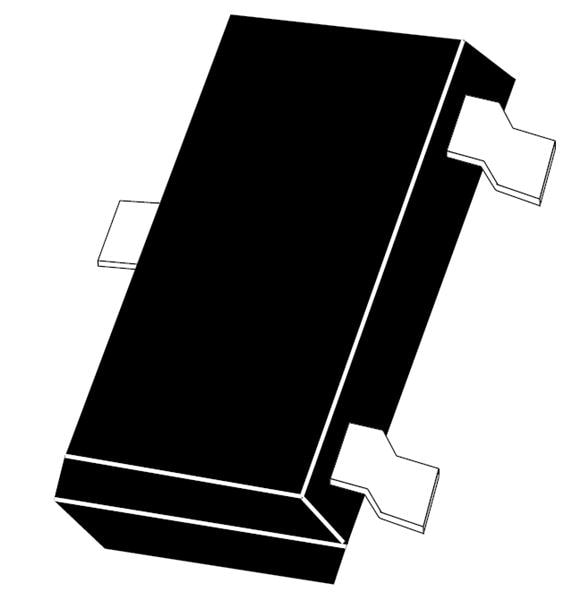

Diodes Incorporated ZRC330F01TA Voltage References 1% 3.3V
Manufacturer: Diodes Incorporated Model: ZRC330F01TA - Contact
Width: 1.3 mm
Height: 1 mm
Length: 2.9 mm
Topology: Shunt References
Unit Weight: 8 mg
Mounting Style: SMD/SMT
Output Voltage: 3.3 V
Reference Type: Shunt Precision References
Initial Accuracy: 1 %
Shunt Current - Max: 5 mA
Shunt Current - Min: 20 uA
Description/Function: Bandgap Circuit
Temperature Coefficient: 50 PPM / C
Operating Supply Current: 5 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Series VREF - Input Voltage - Max: 20 V
