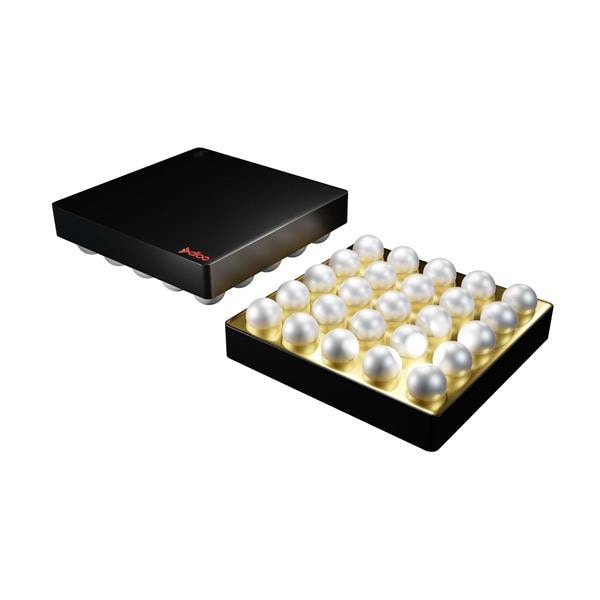

DIOO DIO4481WL25 Analog Switch ICs Type-C Signal/Audio High-Speed Changeover Switch
Manufacturer: DIOO Model: DIO4481WL25 - Contact
Supply Type: Single Supply
Configuration: SPDT/DPDT
On Time - Max: 1 ms
Mounting Style: SMD/SMT
Off Time - Max: 65 us
Number of Channels: 5 Channel
On Resistance - Max: 4.3 Ohms
Supply Current - Max: 70 uA
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.7 V
Operating Supply Voltage: 2.7 V to 5.5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
