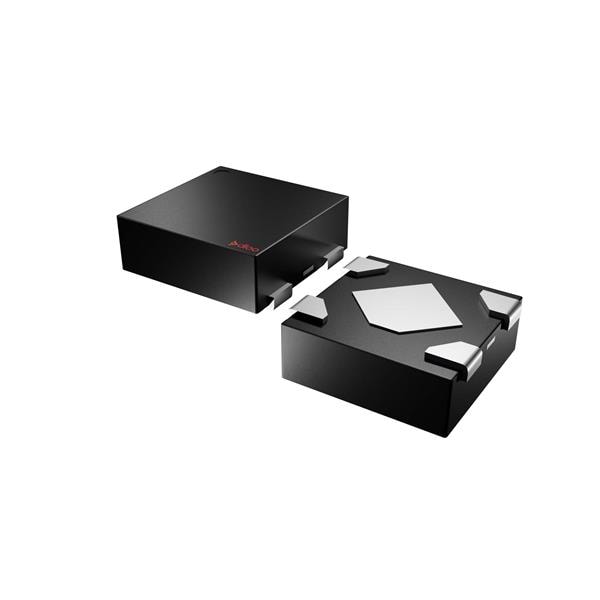

DIOO DIA7965A12ST5 Automotive, High PSRR LDO Linear Regulator 5.5V, 500mA, ultra high PSRR LDO
Manufacturer: DIOO Model: DIA7965A12ST5 - Contact
Polarity: Positive
Output Type: Fixed
Mounting Style: SMD/SMT
Output Current: 500 mA
Output Voltage: 1.2 V
Line Regulation: 6 mV
Load Regulation: Yes, Regulated
Number of Outputs: 1 Output
Quiescent Current: 18 uA
Input Voltage - Max: 5.5 V
Input Voltage - Min: 1.65 V
Operating Supply Current: 20 uA
Operating Temperature Range: - 40 C to + 125 C
Voltage Regulation Accuracy: 1 %
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 55 dB
